TV Case incl. digital control and modular tool system

Get Data Sheet
Smart. Connected. Ready for action.

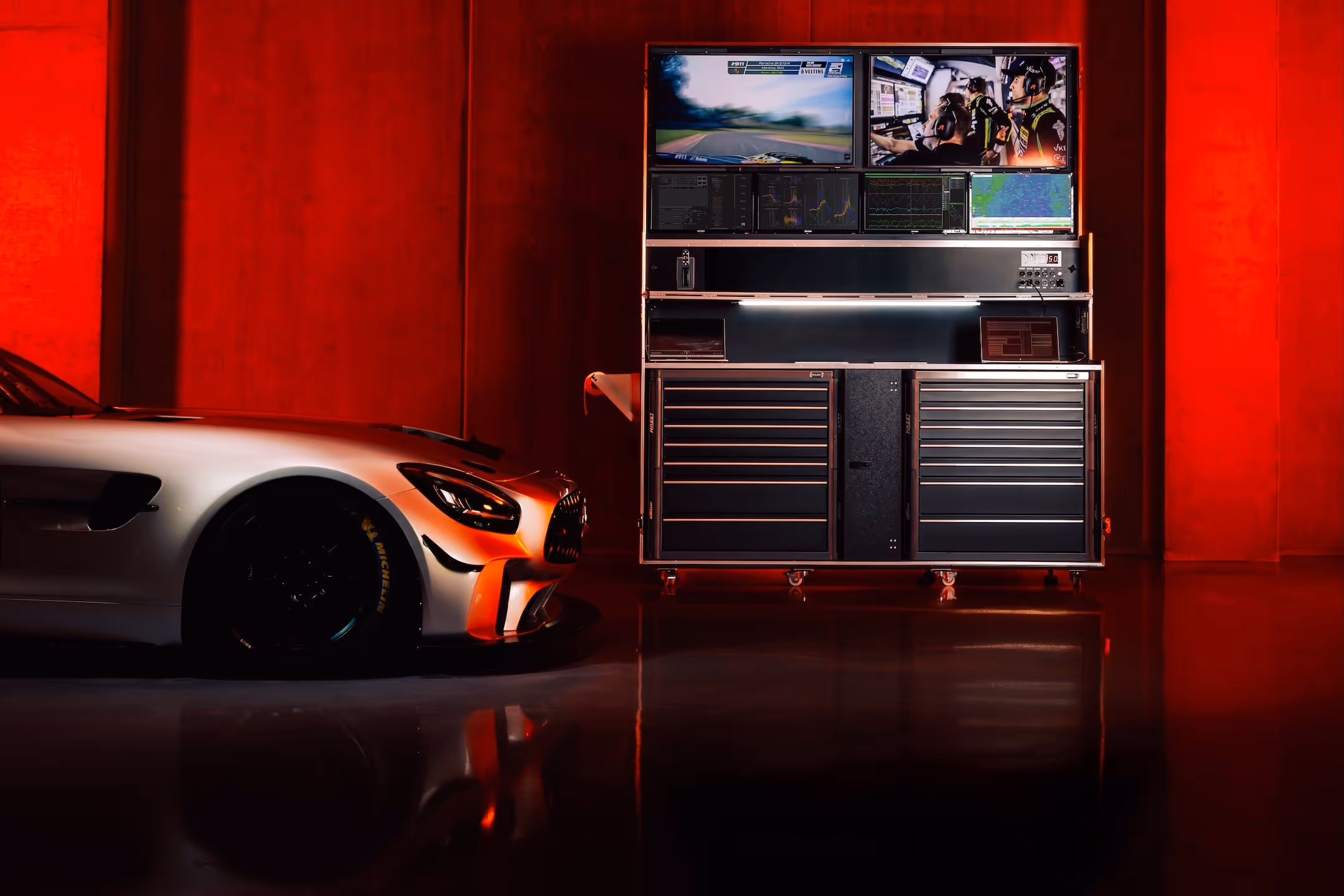

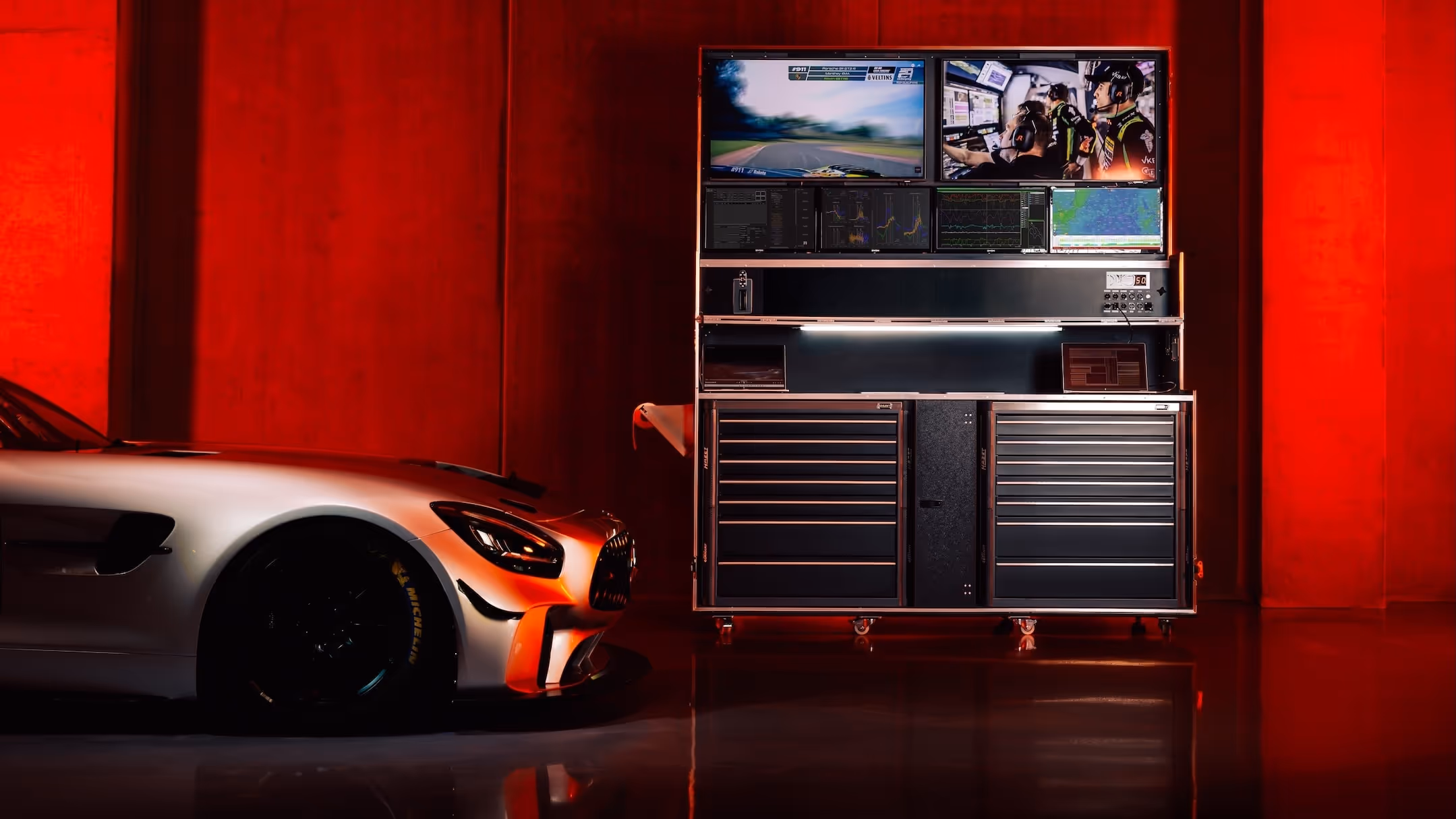

Silver sports car facing a large multi-screen racing telemetry and monitoring system in a red-lit room.
Black control panel labeled Schumann with HDMI, USB, and Ethernet ports for connecting the race engineers with the driver. A digital clock displaying the current time.
Always connected
The TV Case with integrated WLAN router and data storage – delivering clear visibility and a stable connection in every operation.
More overview. More control. More performance.
‍The TV Case is the mobile command center for motorsport – featuring integrated connectivity, multi-display setup, and flexible tool configuration.
Tool-Free Assembly, Easy Transport
Quick and intuitive setup without tools – built tough for frequent use during race operations.
Integrated 6-Display Command Unit
Integrated multi-screen setup for perfect visibility of telemetry, live data, and track signals.
Ample Space for Workstations and Storage
Generously sized with ergonomic workstations and well-organized storage for tools and equipment.
Flexible Data Connectivity
Allows simultaneous reception of the official track feed and additional external video streams.
Multiple Power and USB Ports
Comprehensive connectivity for monitors, devices, and peripherals – neatly integrated for optimal organization.
Dimensions
Compact for transport – fits in standard loading areas and workshop spaces.
Dimensions closed (L × W × H): 2100 × 900 × 1380 mm
Dimensions open (L × W × H): 2100 × 900 × 2600 mm
Weight
Stable construction with integrated tool storage – ready for daily use in professional racing environments.
510 kg (with one filled and one empty Hazet tool case)

TV Case - Connected. Control. Mobile.

Integrated 6-Display Command Unit
GPS-Synchronized Digital Clock
Tool Equipment as Required
Integrated WLAN Router / Synology Storage
9 m Connection Cable
Dual 10 m Power Extension Cable
Wall-mounted setup of five black blank monitors, three on top and two below, with a small digital clock and control panel below them.
Integrated 6-Display Command Unit
Integrated multi-screen setup for perfect visibility of telemetry, live data, and track signals.
2 x 32" & 4 x 16"
Control panel labeled SCHUMANN with digital timer display, HDMI ports, USB ports, a light button, and an Ethernet port.
GPS-Synchronized Digital Clock
Accurate timekeeping via GPS – ideal for team coordination and precise race timing.

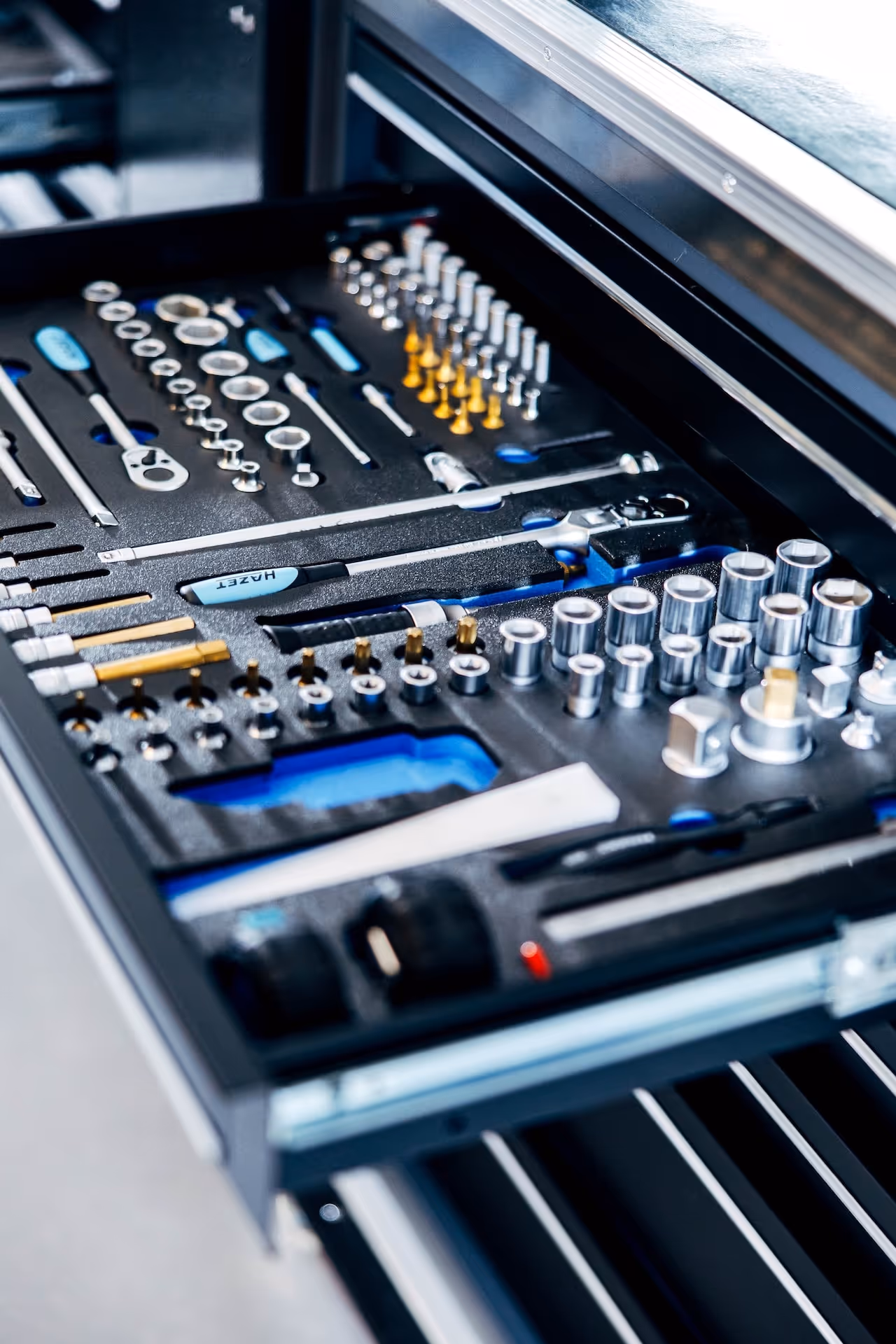

Open tool drawer with organized socket wrenches, screwdrivers, bits, and ratchets in a foam insert.

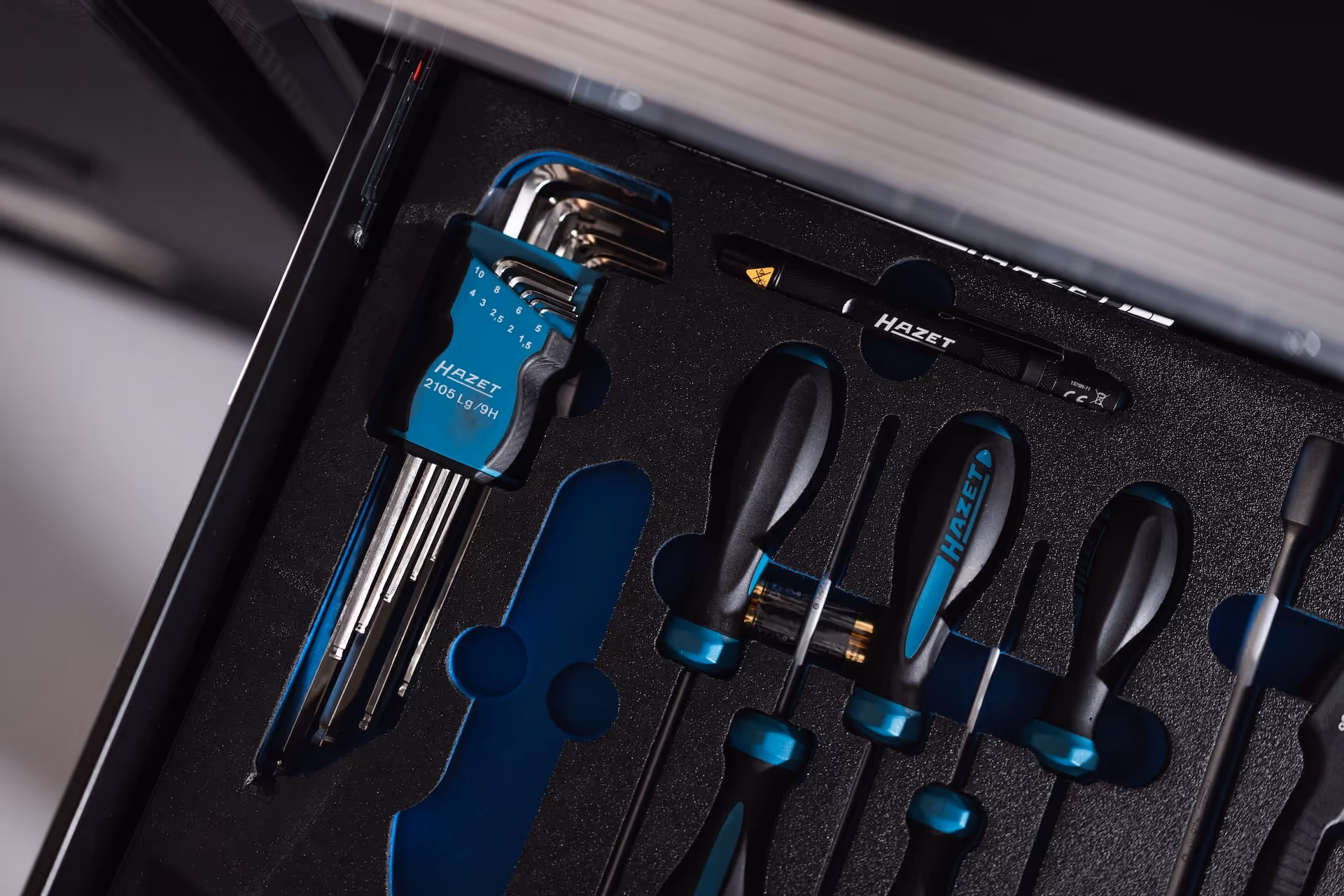

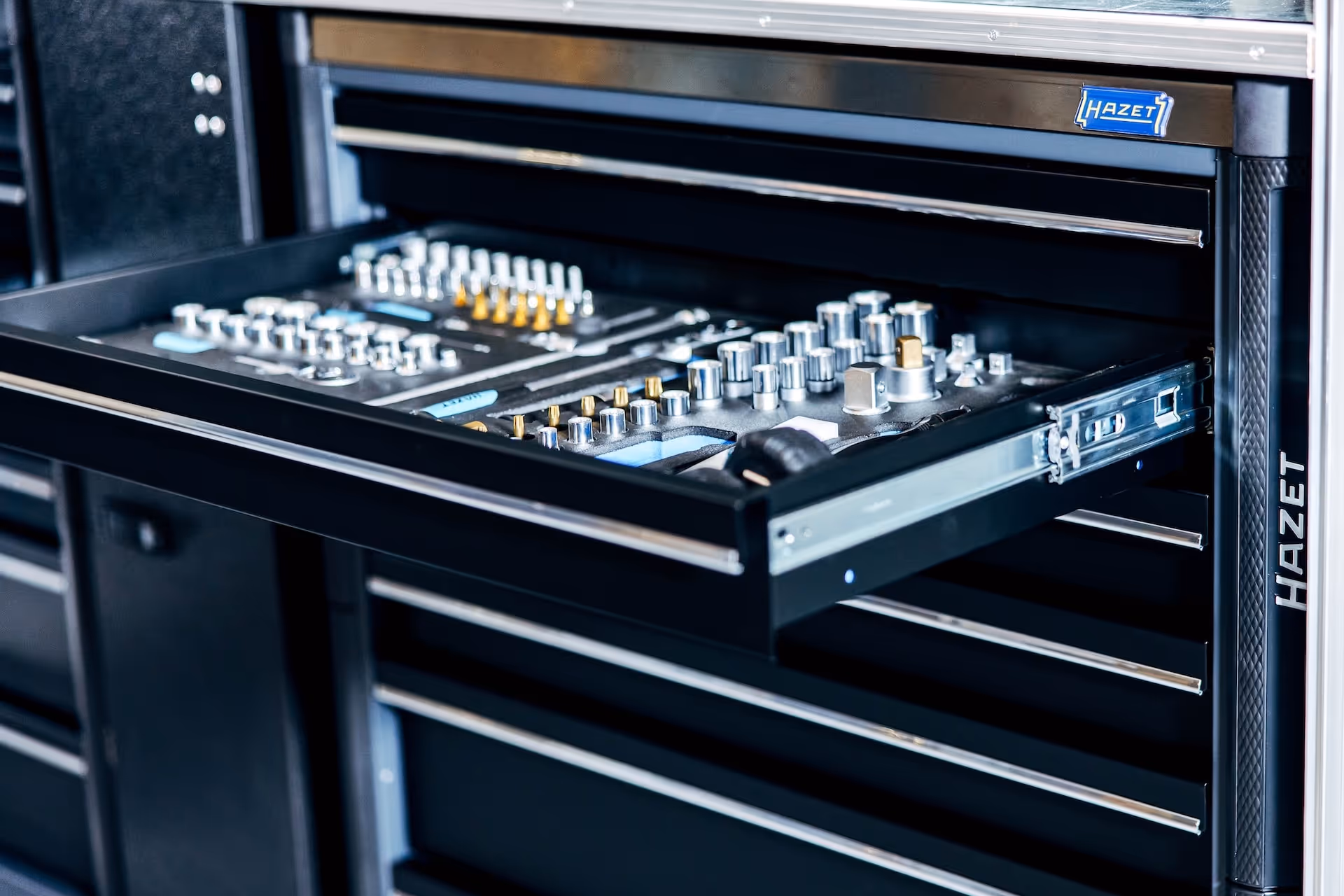

Tool Equipment as Required
Available with two empty, one filled and one empty, or two fully equipped Hazet tool trolleys.

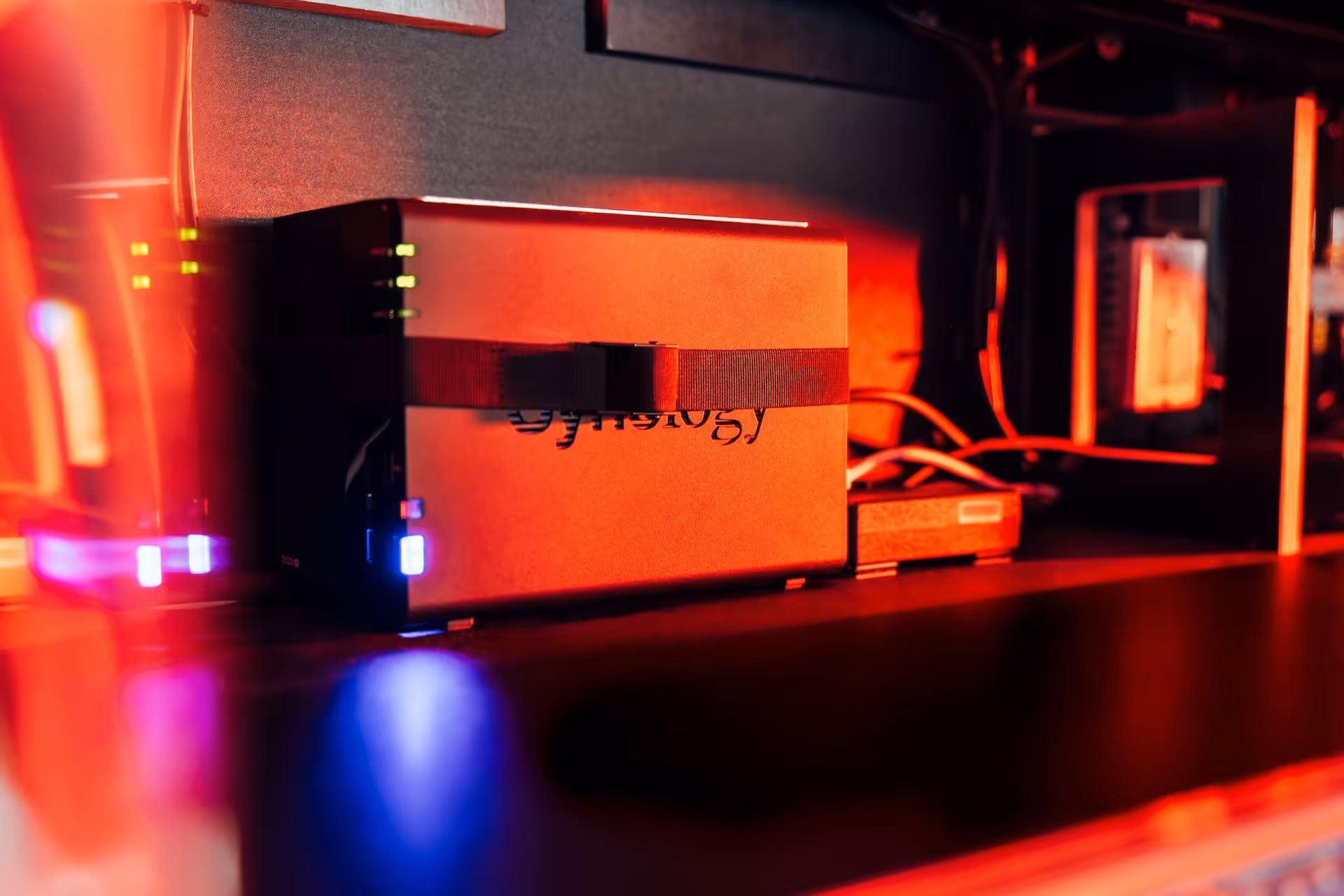

Integrated WLAN Router and Synology Storage
Fast and reliable data connectivity through an integrated WLAN router and centralized storage system – enabling secure, team-wide data access.
Close-up of a white electrical outlet with a black plug connected, labeled 'aircraft KAR 3x1,5/10'.
9 m Connection Cable
Long connection cable for easy access to external power supply.
Close-up of a black circular electrical connector plug on a textured black surface with visible wiring paths.
10 m Power Extension Cable on Each Side
Two integrated 10-meter power extensions for flexible setup at the track.
best in action

Always ready to use, anywhere

Panel with digital clock displaying 11:09:43 and multiple HDMI, USB, and Ethernet ports labeled for TV and USB connections inside a red-lit enclosure.
Panel with digital clock displaying 11:09:43 and multiple HDMI, USB, and Ethernet ports labeled for TV and USB connections inside a red-lit enclosure.
Developed for race and test operations, the TV Case serves as the central command hub for data, analysis, and team communication.
Equipped with four 16" and two 32" screens, it provides optimal display options for telemetry, live data, and track feeds.

The illuminated work surface features six 230 V power outlets, while a rear-access storage area and a large central compartment provide ample space for additional equipment.
Power is supplied via an integrated, self-retracting 9-meter cable, with two additional 10-meter extension cables allowing power distribution to both sides.

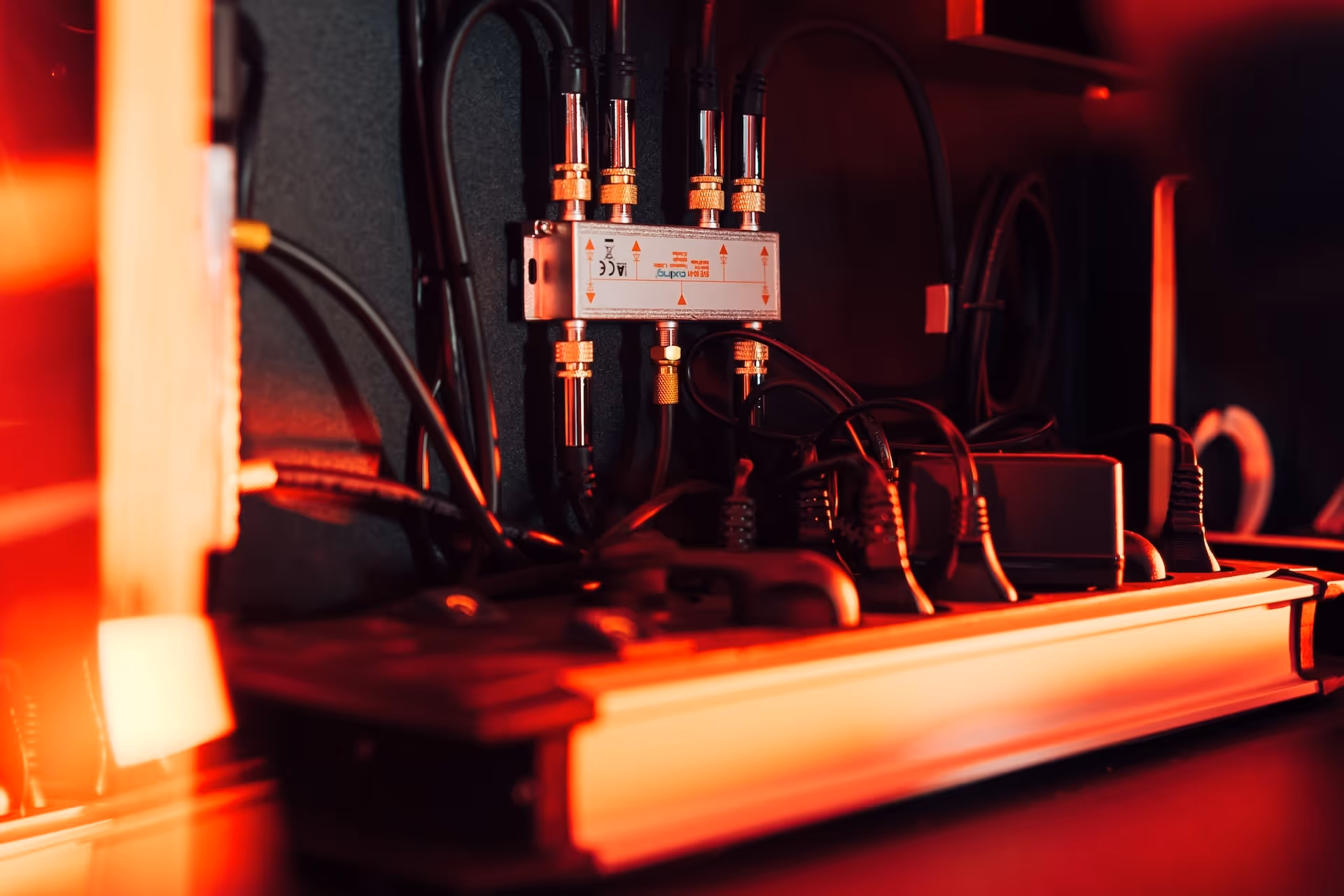

Track signal input is provided through a dedicated connection.
An integrated WLAN router with 2 TB Synology storage enables secure data transfer and archiving – optionally via SIM card for mobile operation.
Get your Flyer
Downloads
Get Data Sheets, Documents and other Files on our Products
TV Case incl. digital control and modular tool system - Flyer
Download
