Fuel Management System incl. digital control and data logging

Name: Fuel Management System
Brand: Equipment for Rennsport

Get Data Sheet

Precise refueling through App control and digital data logging.

Silver Porsche GT3 racecar with open hood connected via hoses to a large white fuel system in a red-lit room.

Close-up of metallic industrial connectors with red accents attached to a machine panel.

Easy to use

The fuel system combines maximum performance, precise control and full mobility in a robust flight case.
Fast, safe and digitally controlled – for efficiency where every second counts.

Efficient. Precise. Smart.
‍The smart fuel system – engineered for maximum control and safety during refueling, wherever performance matters.

Tank Capacity

200 liters – optimized for trackdays, testing, and race operations.

App Control incl. Data recording in app and cloud

Precise refueling through digital control and data logging – intuitively operated via the proprietary app.

Power Supply

12V AGM battery for mobile, self-sufficient operation without external power supply.

Dimensions (L × W × H)

120 × 80 × 102 cm – compact, durable, and easy to transport.

Pump Flow Rate

Maximum flow rate:
76 l/min (depending on vehicle connection) – for fast and efficient refueling.
Example 992 Cup operation:
Refueling 20.5 l/min, Draining 24.8 l/min – precise, reliable, and consistent.

Pump

400 W high-performance pump ensuring consistent and reliable fuel delivery.

Integrated Fuel Filter for Clean Operation

Ensures maximum system reliability through clean fuel delivery – protecting both vehicle and equipment.

Certification

TÜV certification in progress – ensuring the highest safety and quality standards.

Fuel Case - Powerful. Mobile. Intuitive.

App-controlled operation incl. Fill-Level Monitoring by Weight and Volume

Precise refueling through digital control – preset the desired fuel quantity in the app and fill automatically.

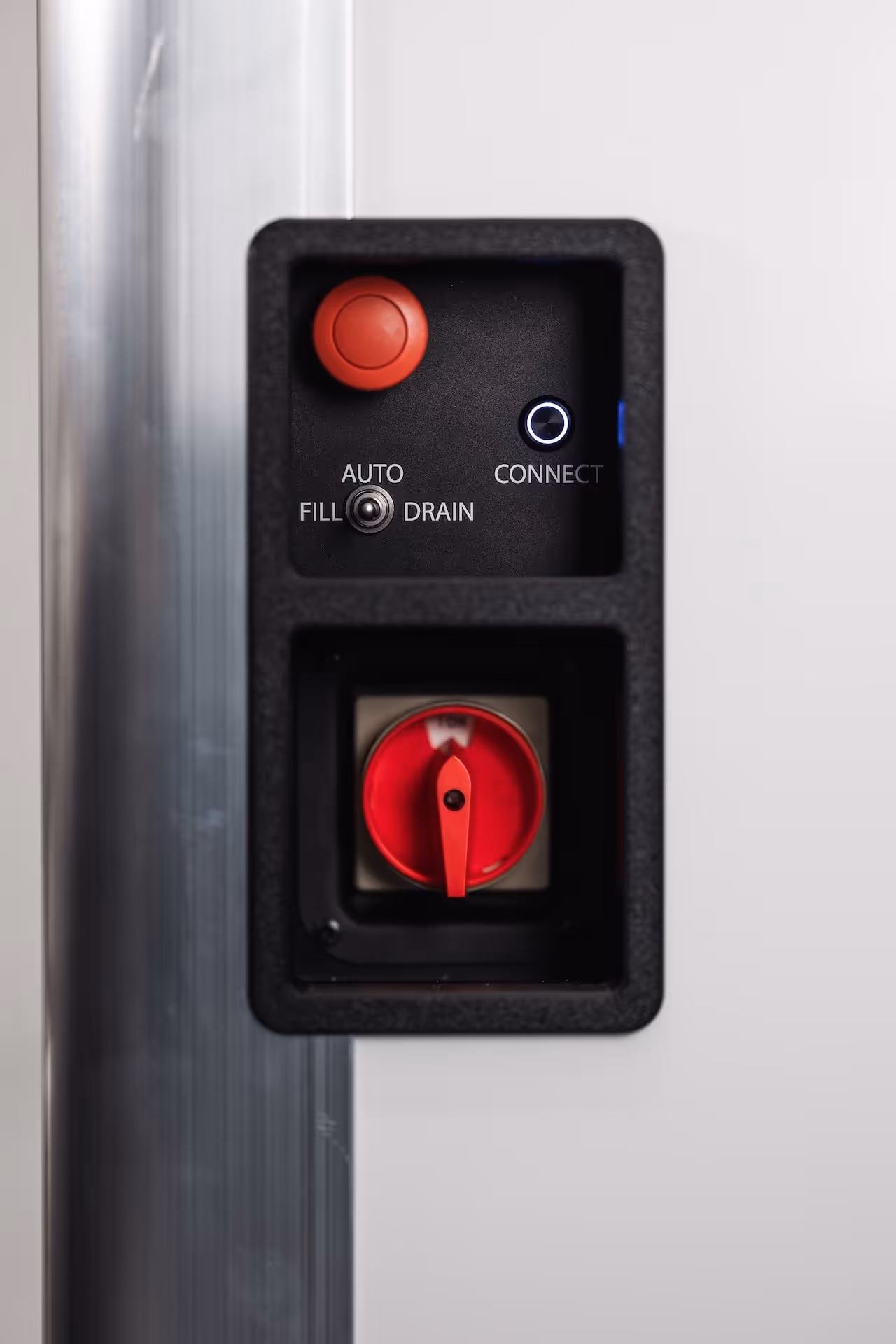

Close-up of a control panel with a red emergency stop button, a toggle switch labeled AUTO, FILL, DRAIN, and a red rotary switch.

Refuelling and defuelling also possible without app

Full functionality even without the tablet – thanks to a redundant built-in manual control unit.

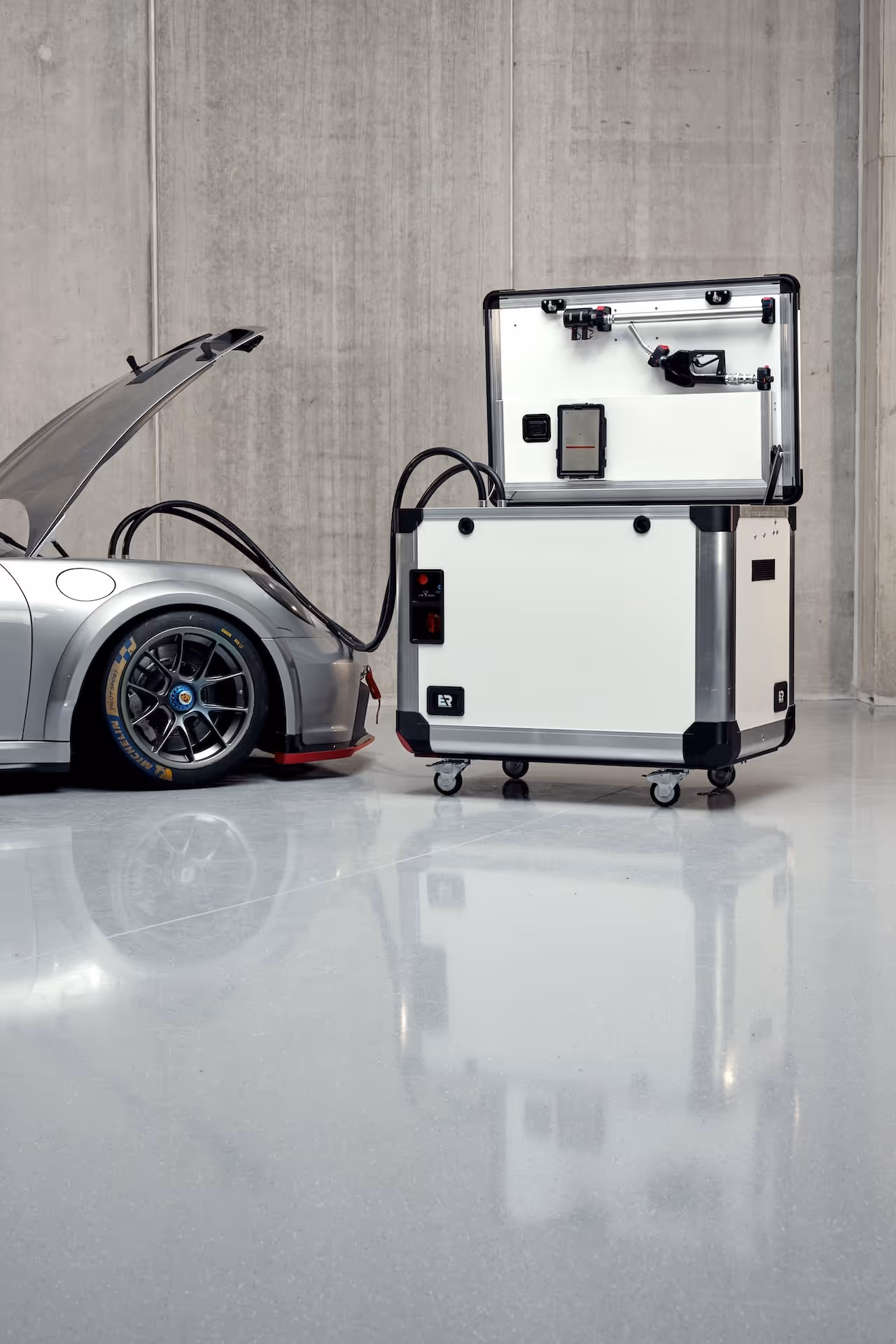

Silver sports car connected to a white portable fuel container with open lid on a polished concrete floor.

Compact, Mobile Flightcase

Durable, mobile, and precisely fitted – for fast and secure transport in demanding motorsport environments.

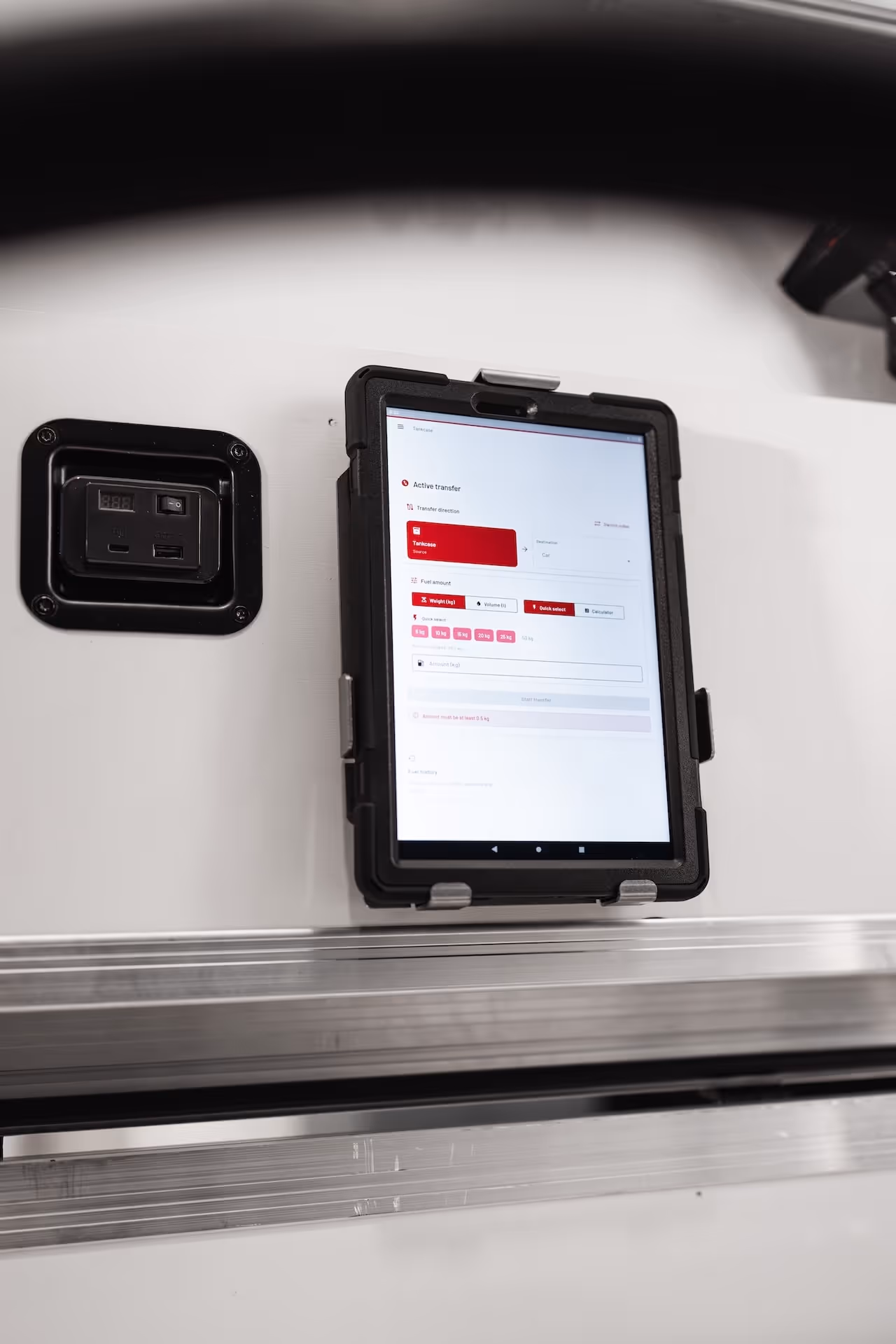

Tablet in rugged case mounted on a white wall displaying an active transfer interface with fuel amount options.

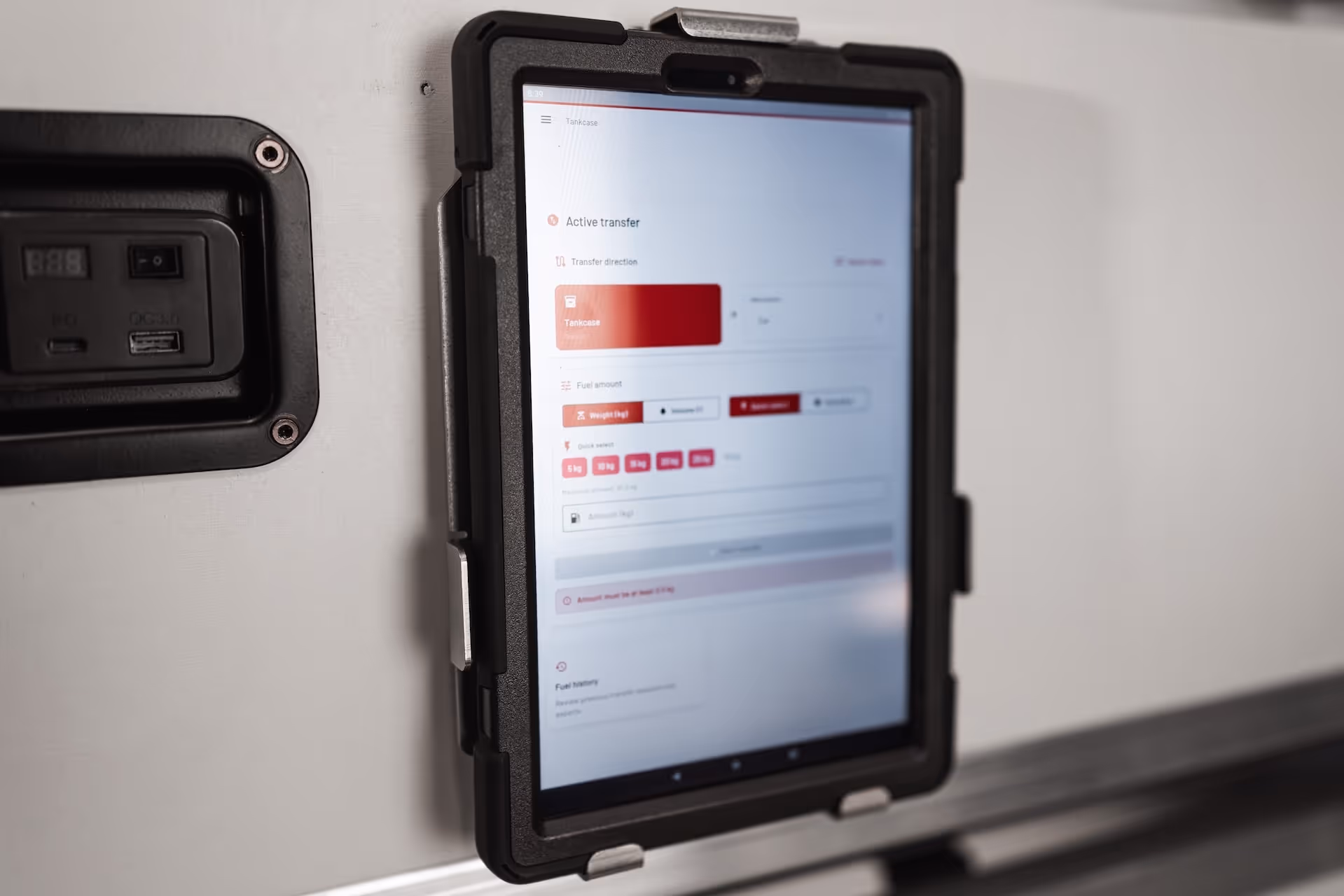

Integrated charging concept for tablet, including tablet holder

Tablet always charged and within reach – for comfortable operation and full control during use.

best in action

Always ready to use, anywhere

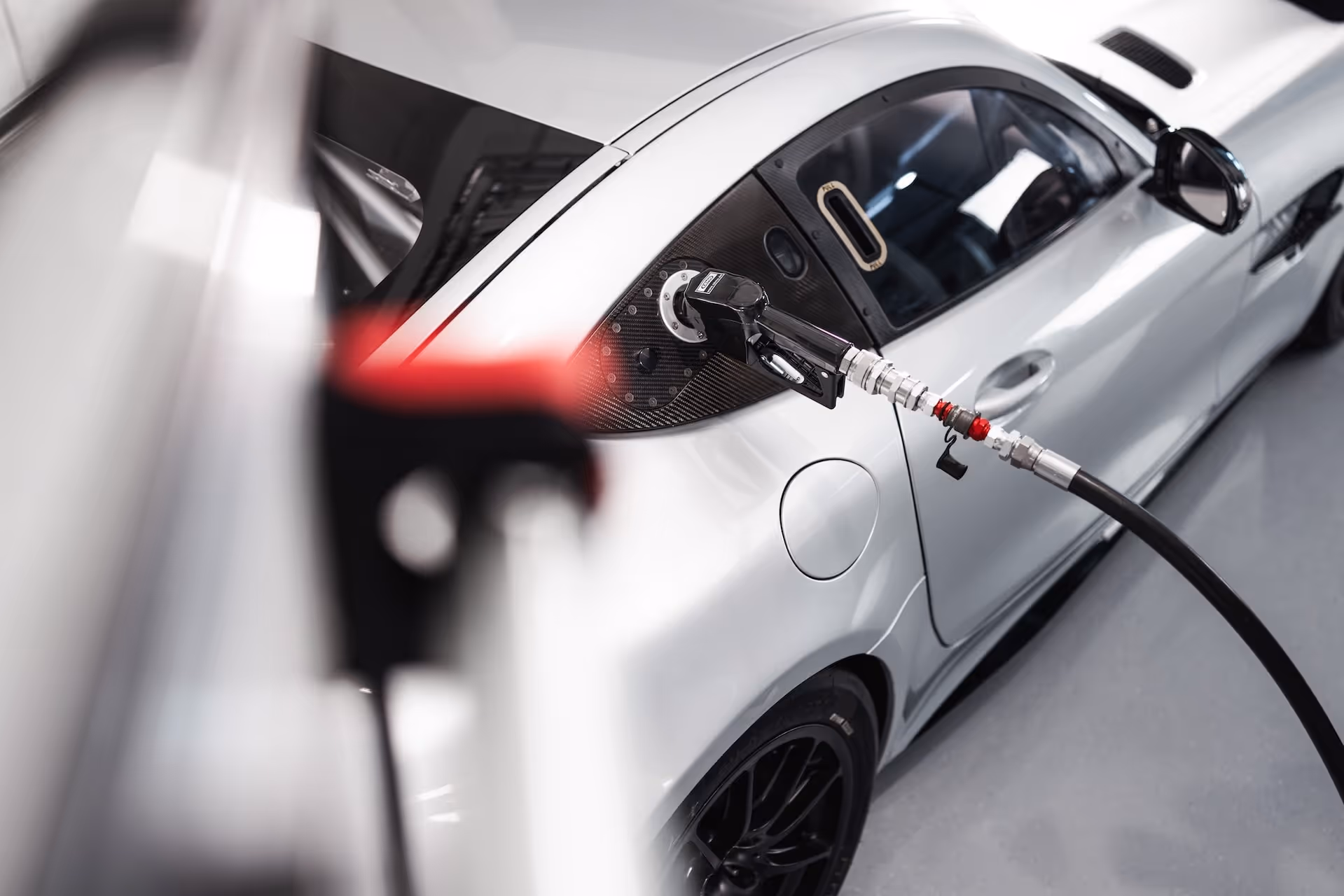

Silver racecar refueling with a fuel nozzle attached to a black carbon fiber fueling port.

Close-up of the fuel systems nozzle inserted into a car's fuel tank in workshop.

Control panel with a red emergency stop button, a toggle switch labeled AUTO FILL DRAIN, and a red rotary knob inside a black frame.

Close-up of two metallic connectors with red fittings attached to a piece of industrial equipment.

The Pro fuel system is the perfect solution for professional use in motorsports, at events or in workshops. It combines high performance, precise control and maximum mobility in a robust, rollable flight case – optimised for efficiency and safety.

With a tank capacity of 200 litres, a powerful 400 W pump and a pump delivery rate of up to 76 litres per minute, the fuel system enables fast and clean refuelling of a wide variety of vehicles. Thanks to intelligent app control, the desired fuel quantity can be conveniently preset and each refuelling process can be assigned to a vehicle or event.

Add Ons
