Delivers exact measurements down to the smallest detail – for perfect suspension and setup tuning.
Robust construction ensures repeatable results and absolute reliability – with a maximum load per wheel of of 850 kg (Basic and Pro).
Easy setup, smart app control, and accurate results – for maximum efficiency in the setup process.
Efficient rechargeable batteries provide sustainable power and long operating times – both in the workshop and at the racetrack.
The integrated charging system allows convenient charging of all components without additional effort – fast, safe, and user-friendly.
Compact and adaptable design – suitable for vehicles from various manufacturers and ideal for precise adjustments on both road and track.
Optimized for flexible use – whether fine-tuning in the workshop or quick analysis in the paddock.
The alignment system can be customized with team or manufacturer branding – creating a unified, professional appearance.
End-to-end digital data acquisition and processing – for maximum efficiency and precision.
Measurement data is automatically and securely transferred to the digital setup system for safe storage and analysis.
Automatic detection and alignment to the vehicle center ensure maximum accuracy for every measurement.
Digitalized processes reduce operator errors and deliver repeatable, objective measurement results.
Automatic generation of measurement reports with full traceability of all values.
Clear, user-friendly interface for quick navigation, precise analysis, and effortless data management.

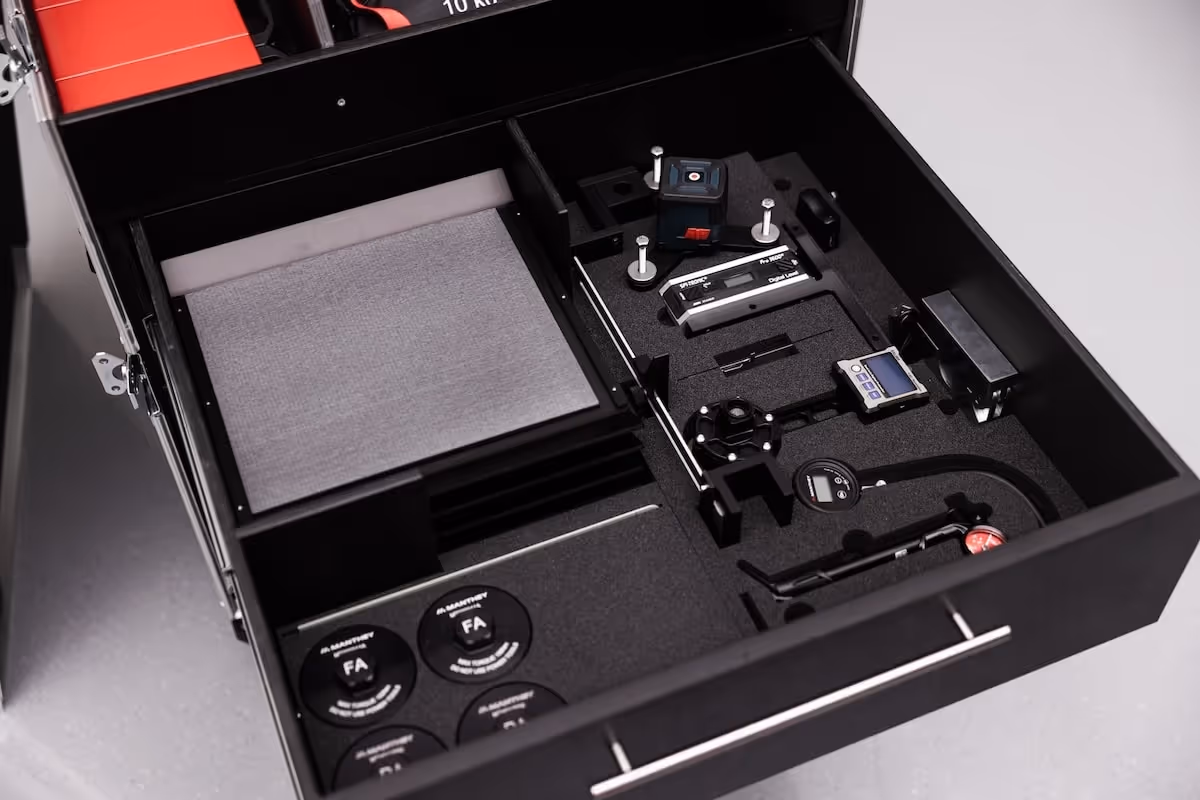

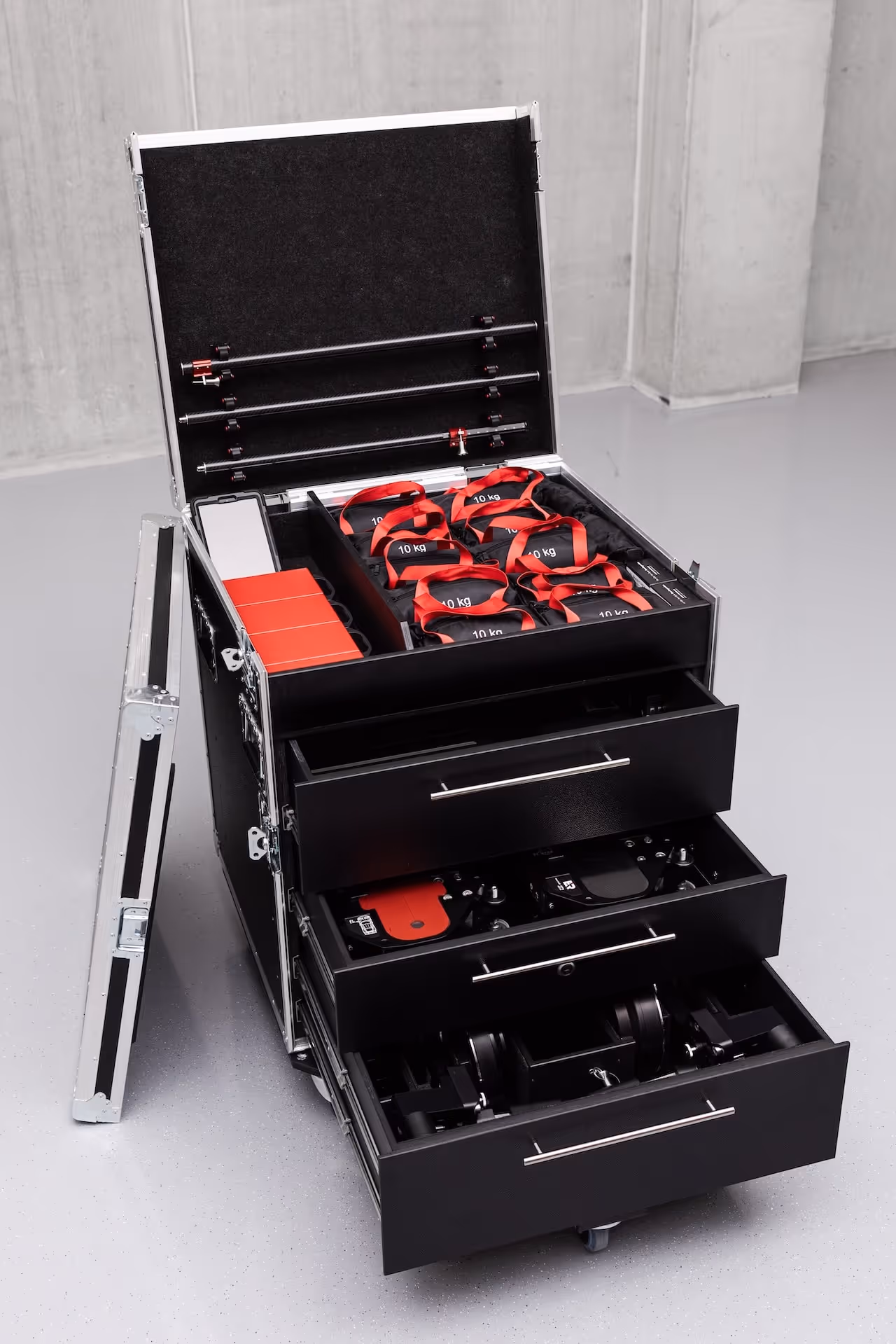

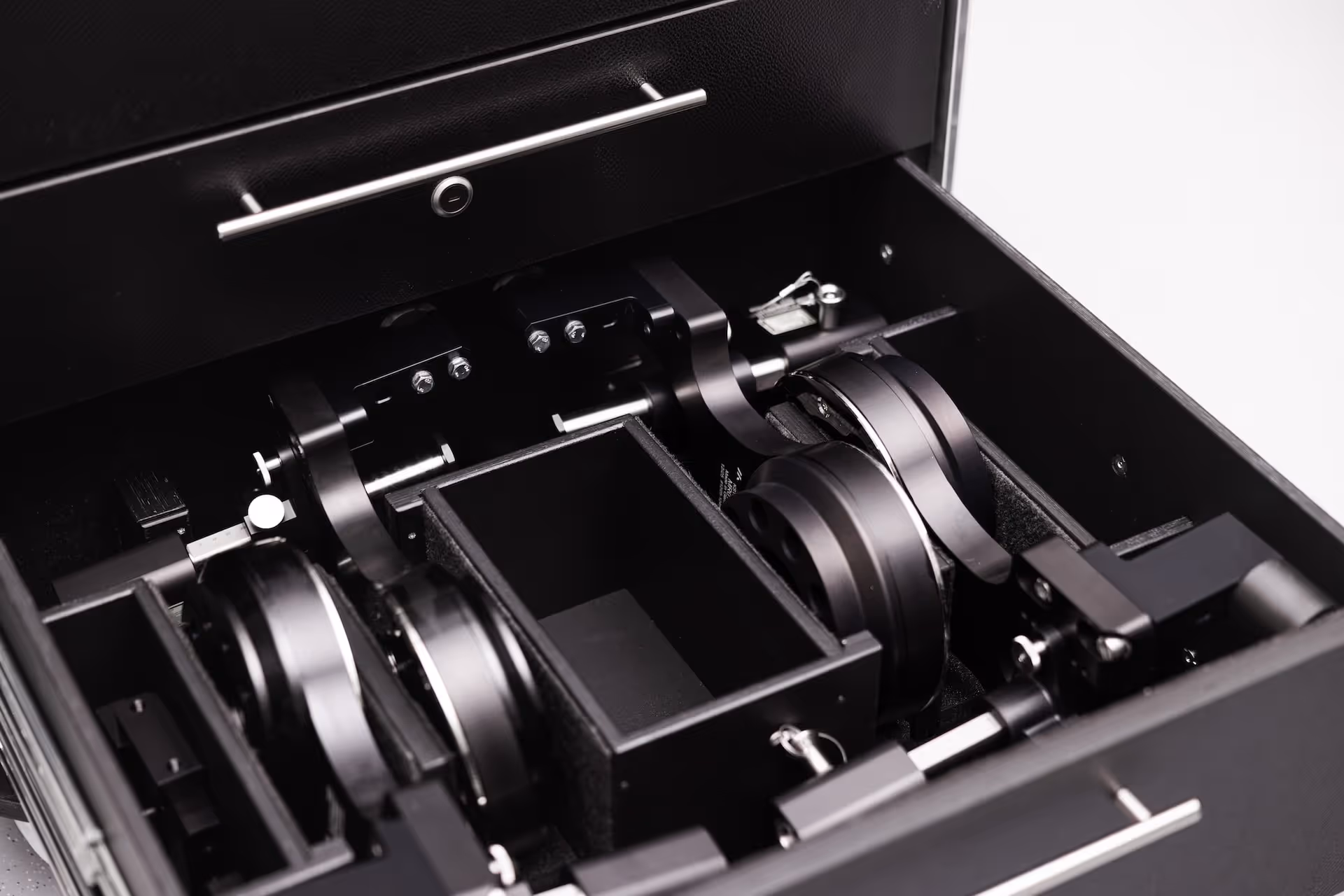

Robust case for safe transport and protected storage of all components.

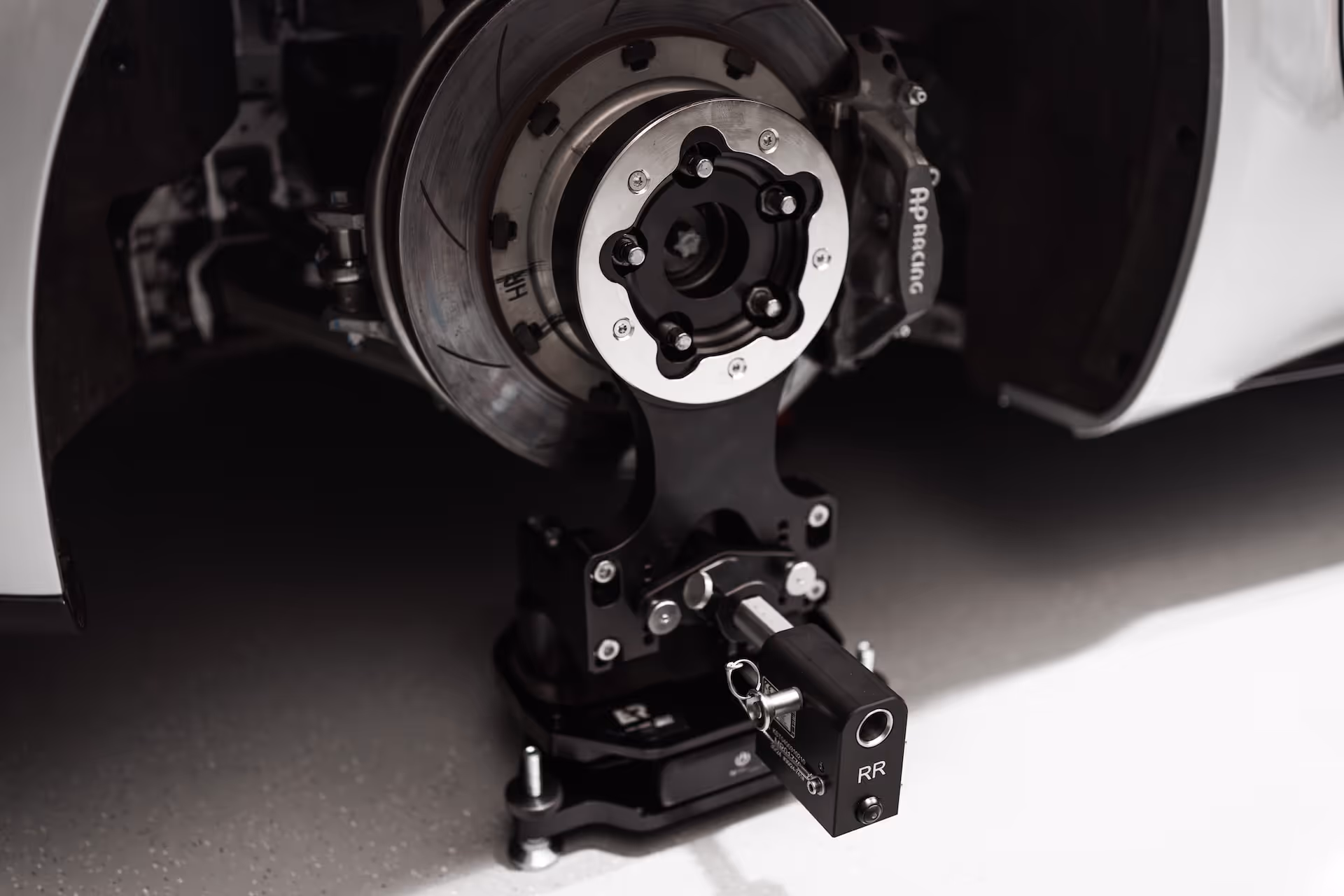

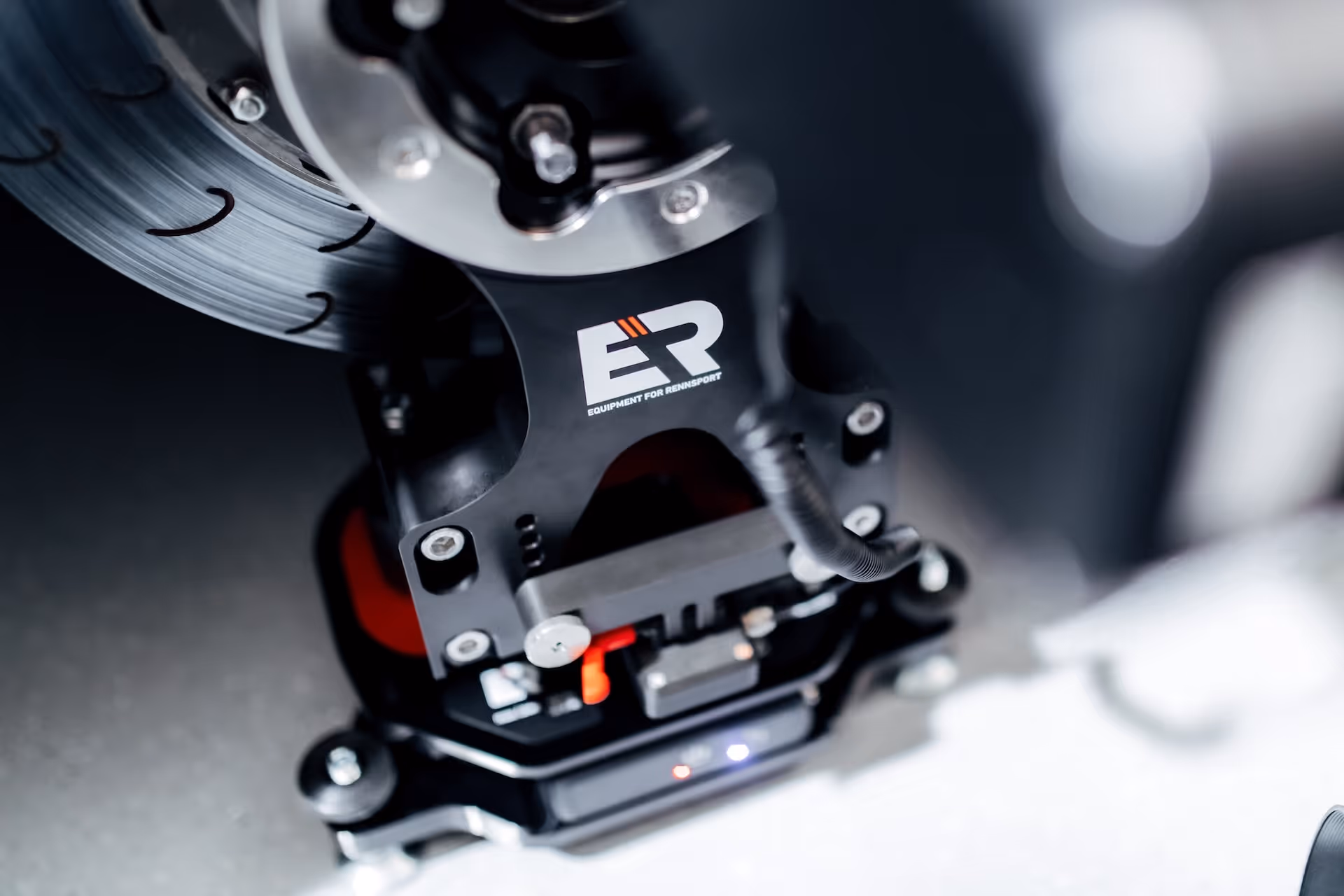

Precision-engineered measuring wheel for accurate camber, toe, and corner weight readings – optimised for maximum accuracy. The base frame of the alignment system can be anodised in custom colours to complete the personalised setup.

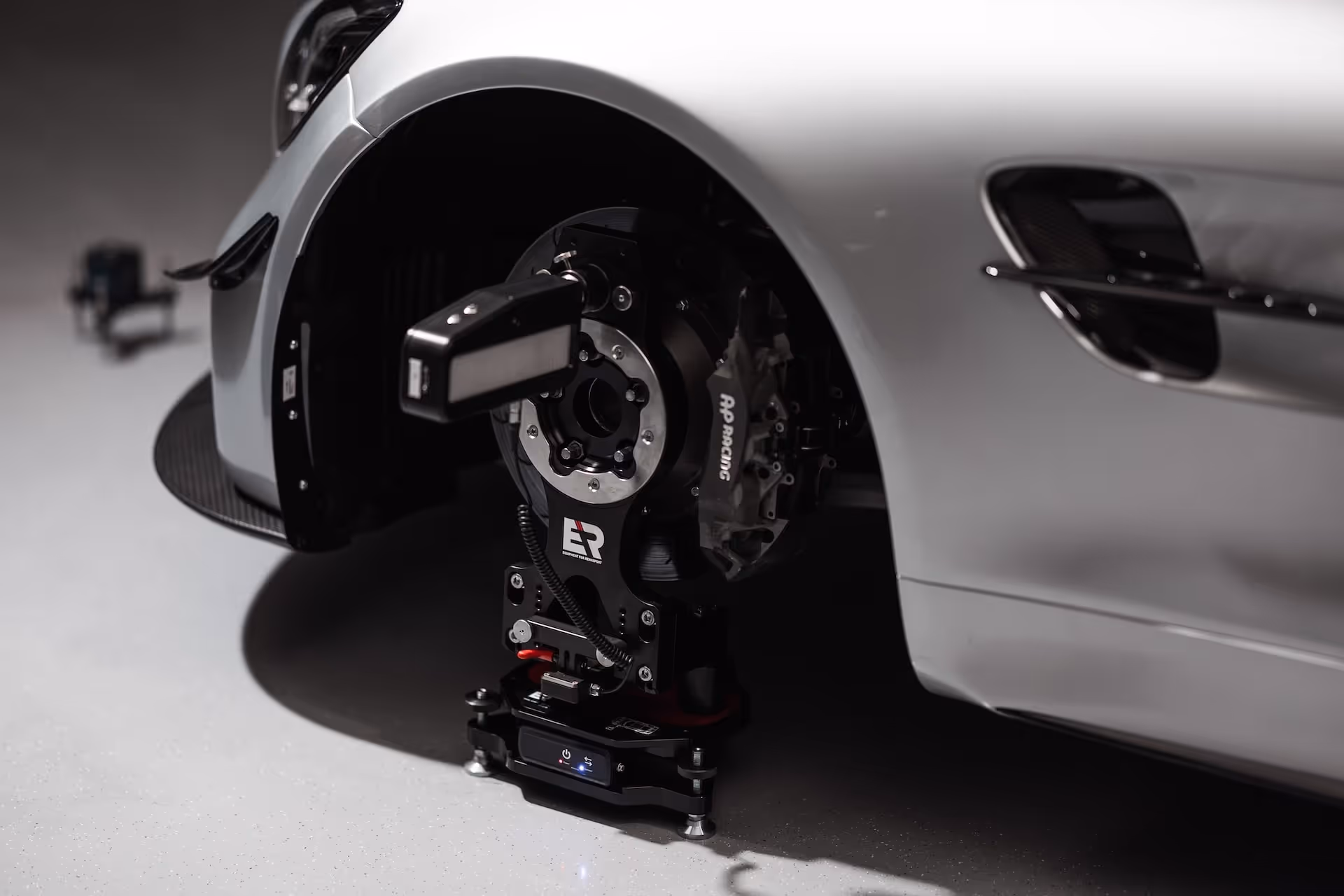

The Measuring wheel Pro expands the capabilities of the Basic model with a fully digital data acquisition system. In addition to wheel load, track width, camber, and toe, all values are transmitted directly to the app – ensuring fast, precise, and traceable measurements. The base frame of the alignment system can be anodised in custom colours to complete the personalised setup.

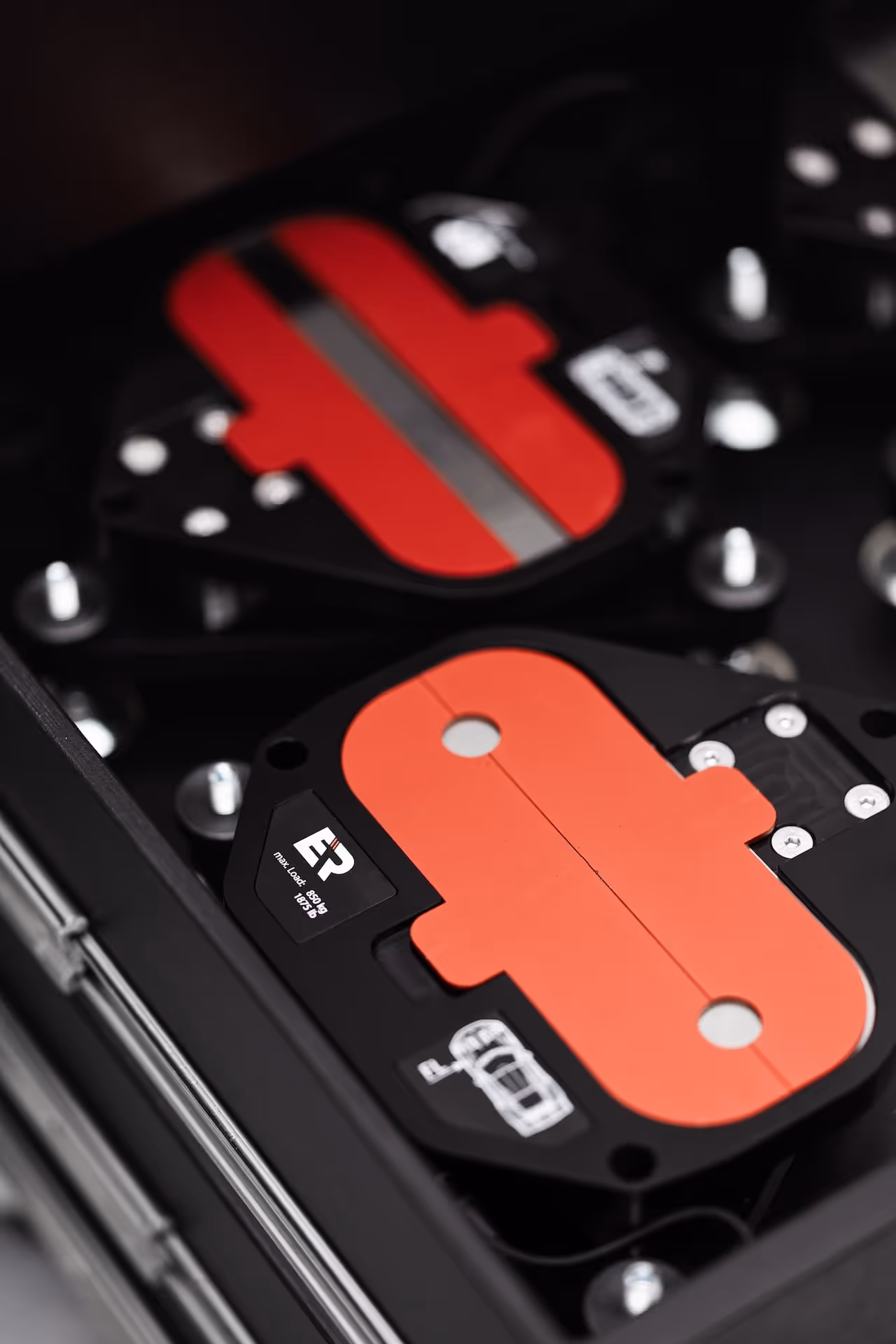

For precise determination of corner balance – with direct data transfer and in-app display, even in the Basic version. The wheel load scale can also be customised to match the team’s identity. Vehicle silhouettes can be printed on insert plates, which are then glued into the top plates. Additionally, a company logo can be added to visibly incorporate the brand’s presence.
Digital interface for capturing, displaying, and storing all measurement data – with encrypted data transfer and cloud integration.

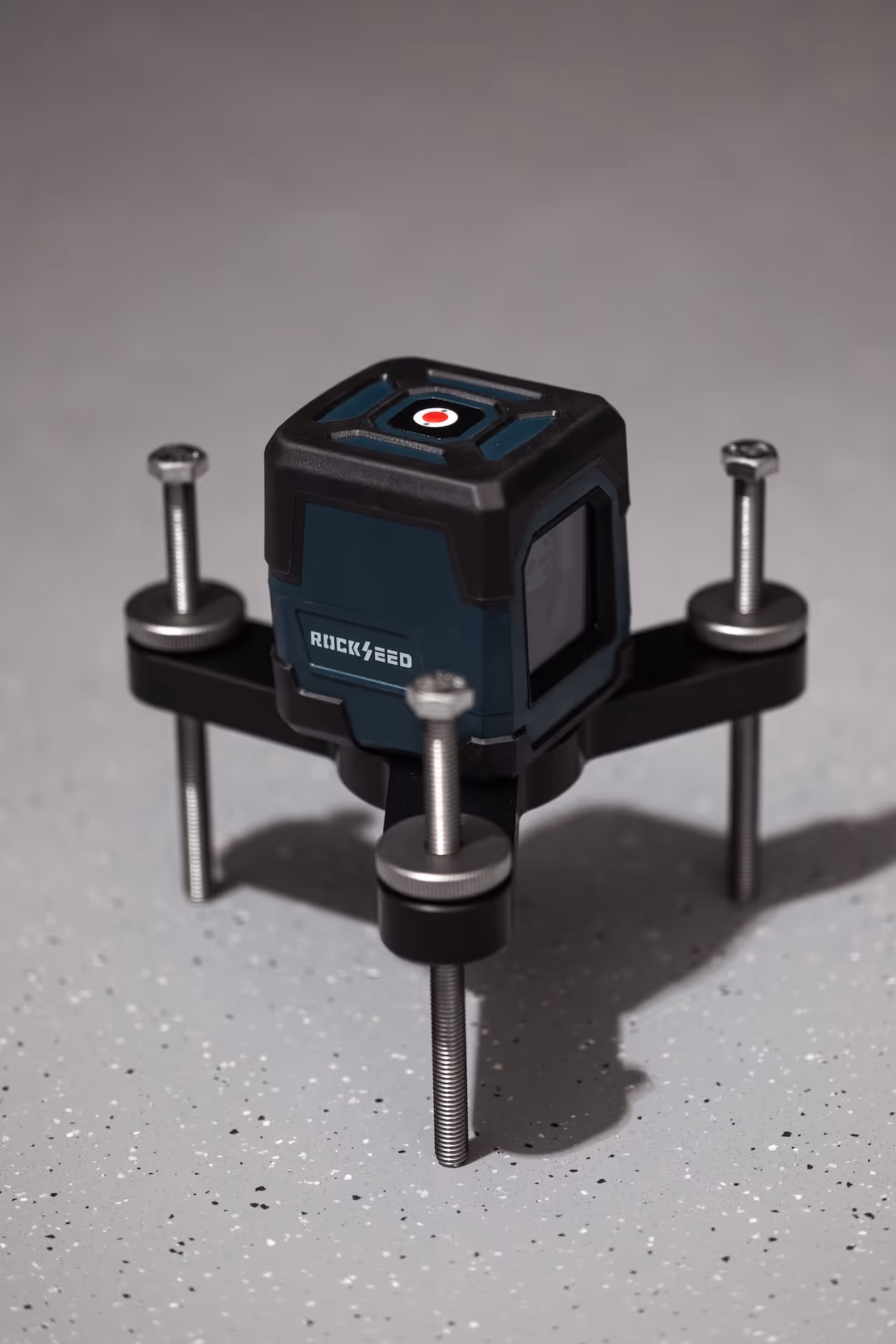

Ensures perfect alignment and maximum measurement accuracy.
For precise measurement and adjustment of camber angles.
Allows precise determination of track width and toe settings.

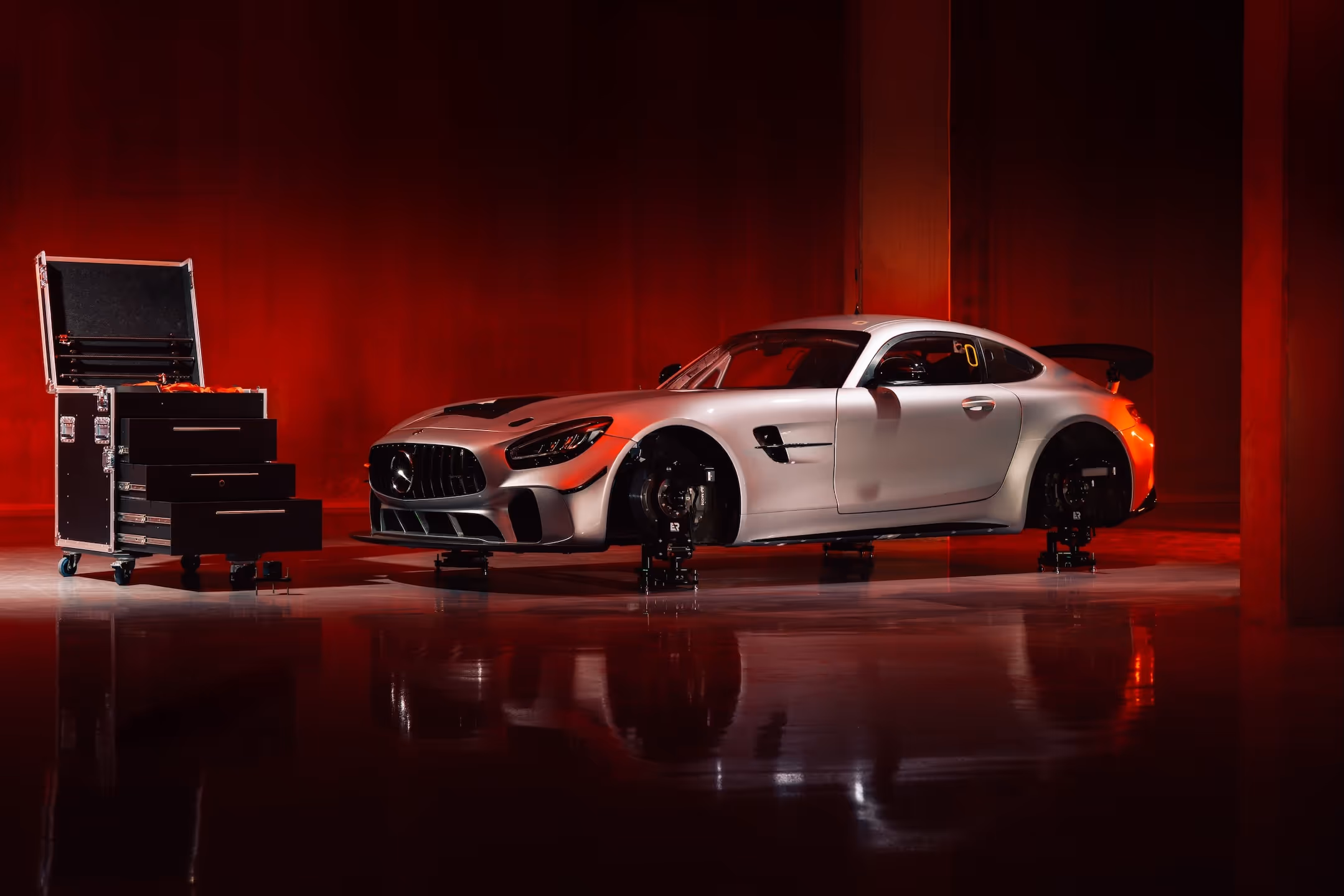

The alignment system was developed for precise chassis measurements in motorsport, track days and professional workshop operations. It impresses with its robust mechanics, high accuracy and sustainable energy supply. With a maximum wheel load of 850 kg per wheel and rechargeable batteries in the wheel load scales, the system offers maximum independence and precision – without the need for an external power supply.
The system is available in two versions:
Basic alignment system – the proven, mechanical standard version
Digital Pro alignment system – the advanced, digitally controlled version with app connection and cloud integration
The basic version offers everything you need for reliable and repeatable chassis measurement.Mechanically robust and easy to use, this version is ideal for workshops, teams and engineers who value precise results and classic measurement methods.The Digital Pro version builds on the proven mechanics of the basic version and expands it with comprehensive digital functions. It was developed to make measurement processes even faster, more precise and data-based.

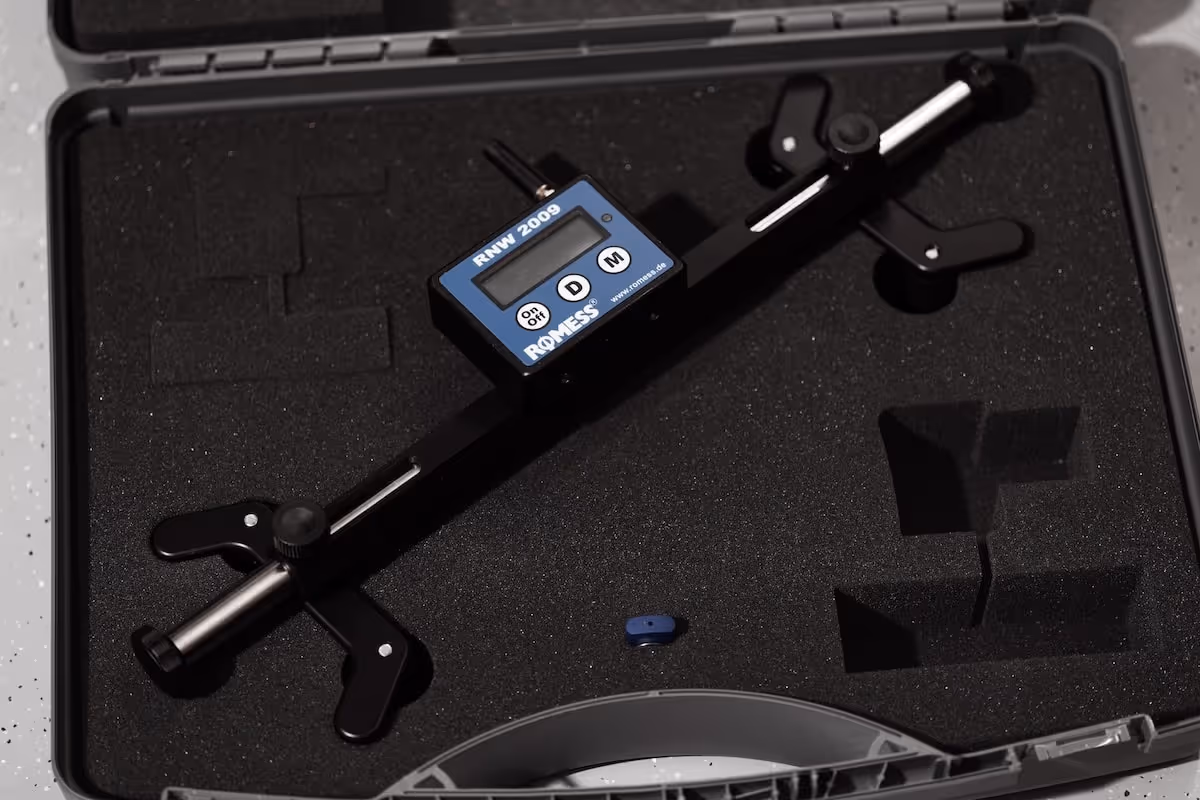

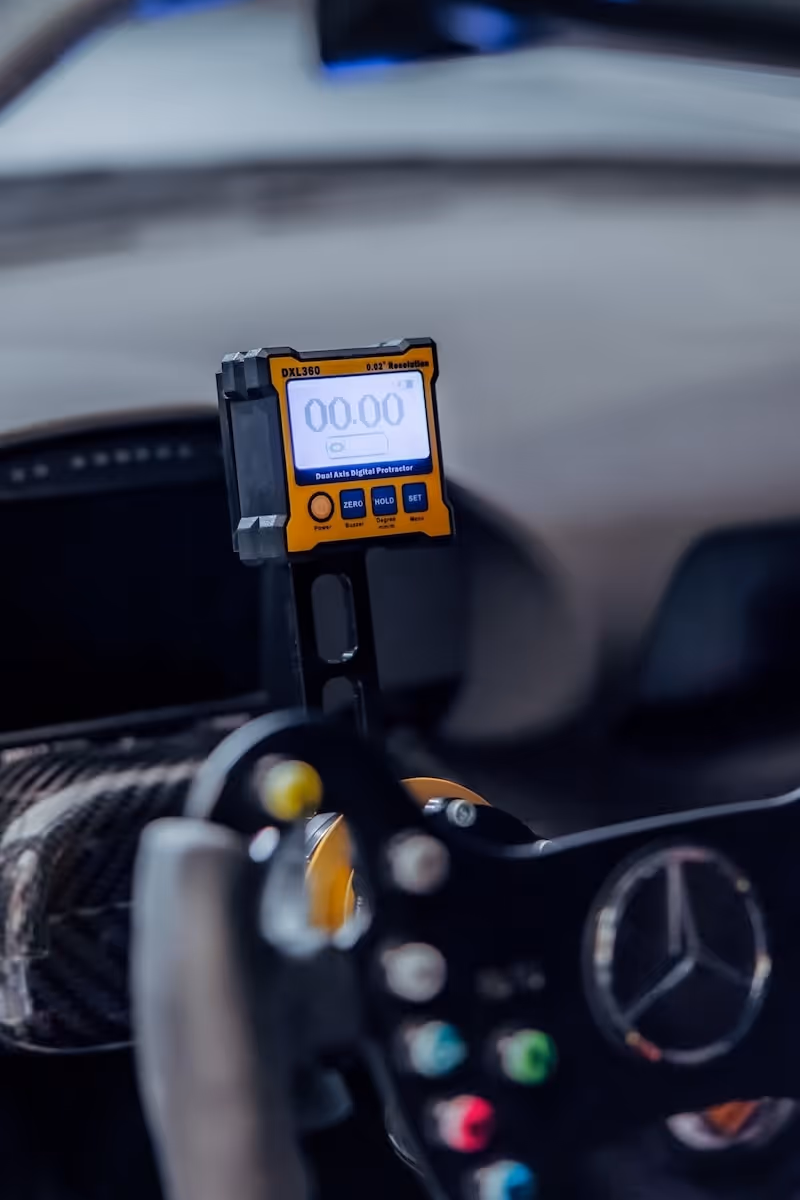

Secures steering wheel position for accurate alignment and setups. Quick-release system allows fast use with original wheel.
Secures the precise steering wheel position – with wireless data transfer directly to the app.

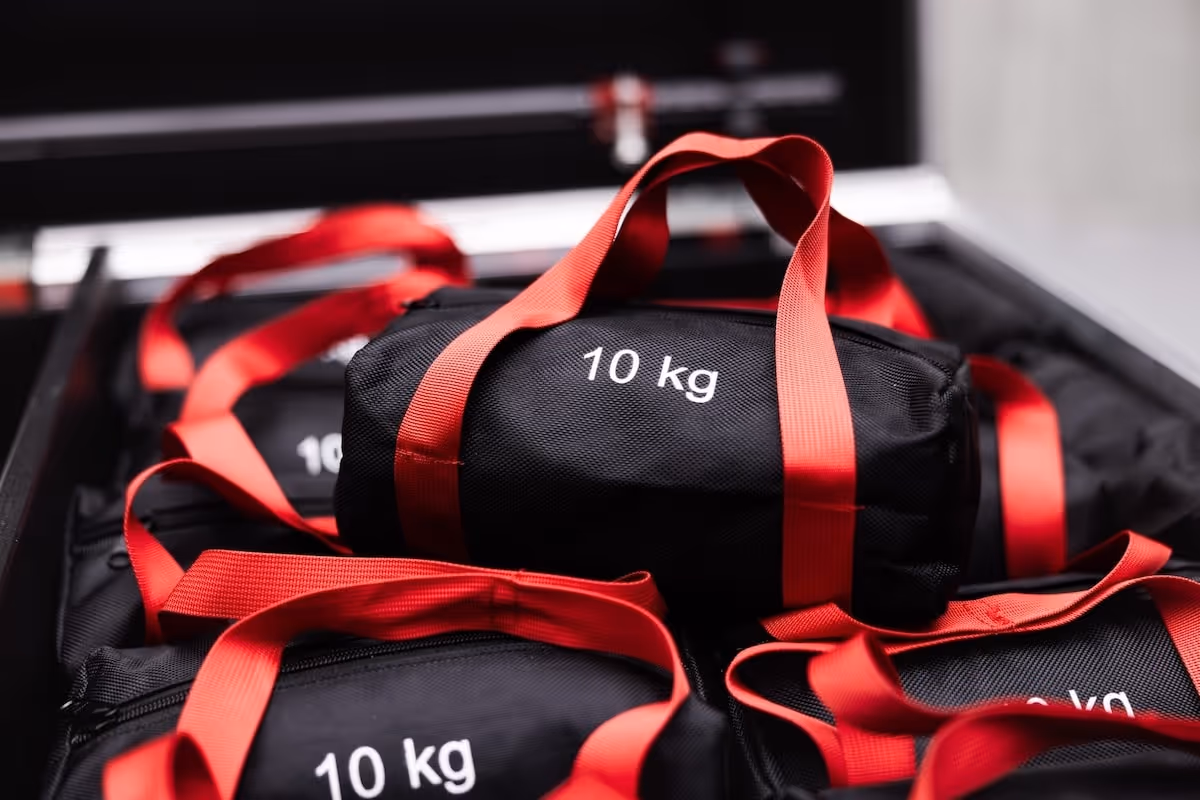

Used to simulate driver weight or additional load during setup measurements.
Vehicle-specific kit for KTM models – provides secure and clean fluid transfer.
Solid block for safe positioning and support of vehicles equipped with air jack systems.

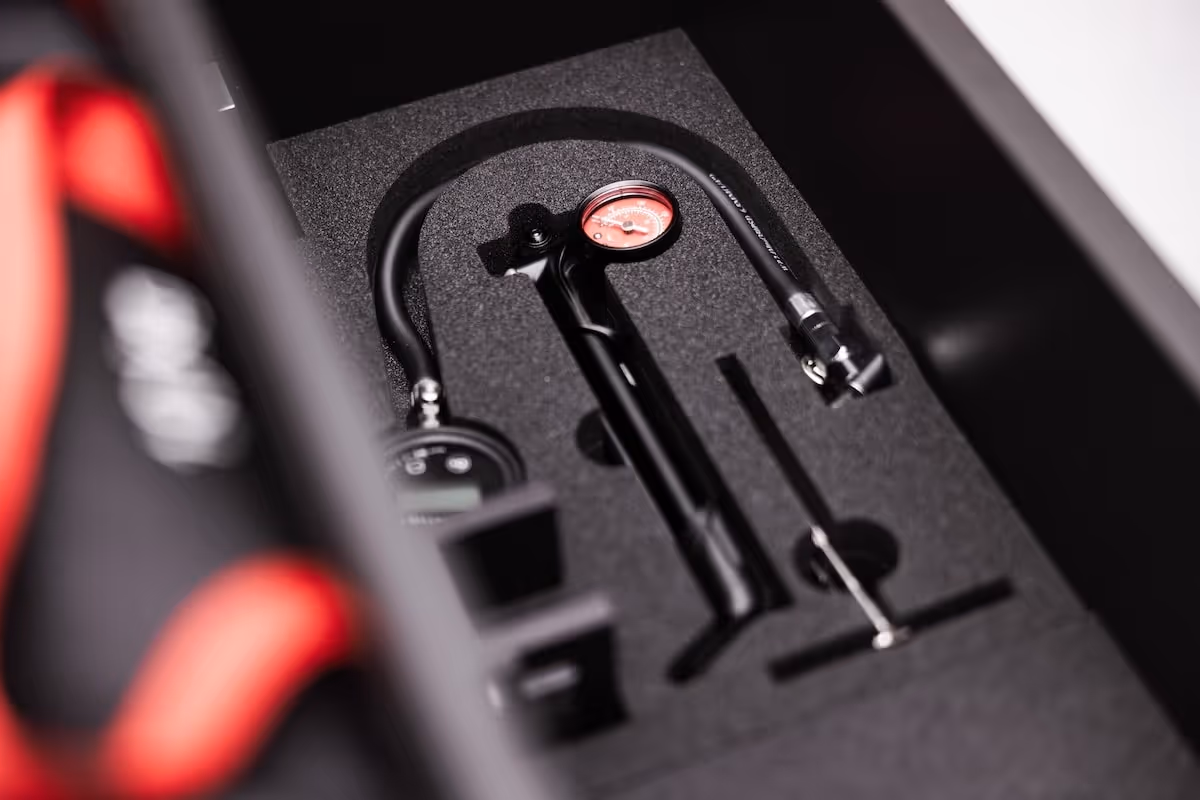

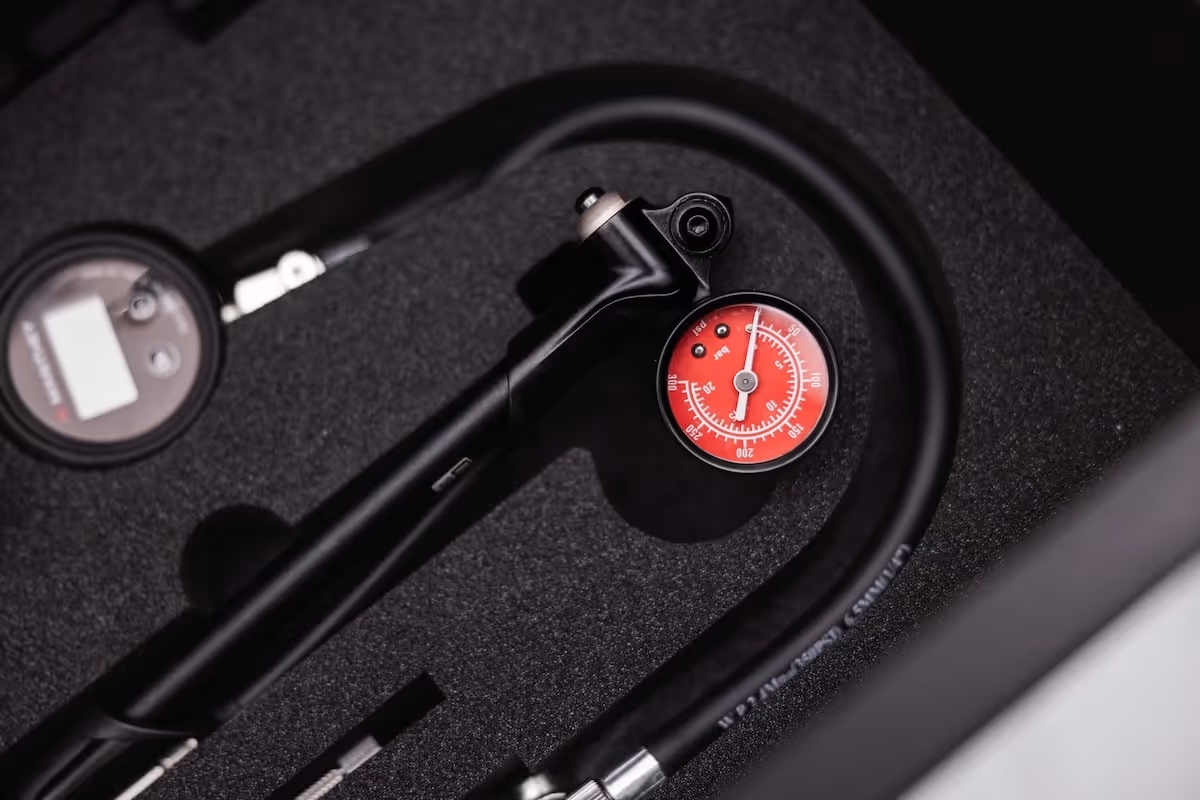

For quick, precise monitoring of tire pressure before, during, and after operation.
The tire load plates complement the measuring wheel system and enable precise wheel load measurement with the wheels mounted on the car.
