Quick and intuitive setup without tools – built tough for frequent use during race operations.
Integrated multi-screen setup for perfect visibility of telemetry, live data, and track signals.
Generously sized with ergonomic workstations and well-organized storage for tools and equipment.
Allows simultaneous reception of the official track feed and additional external video streams.

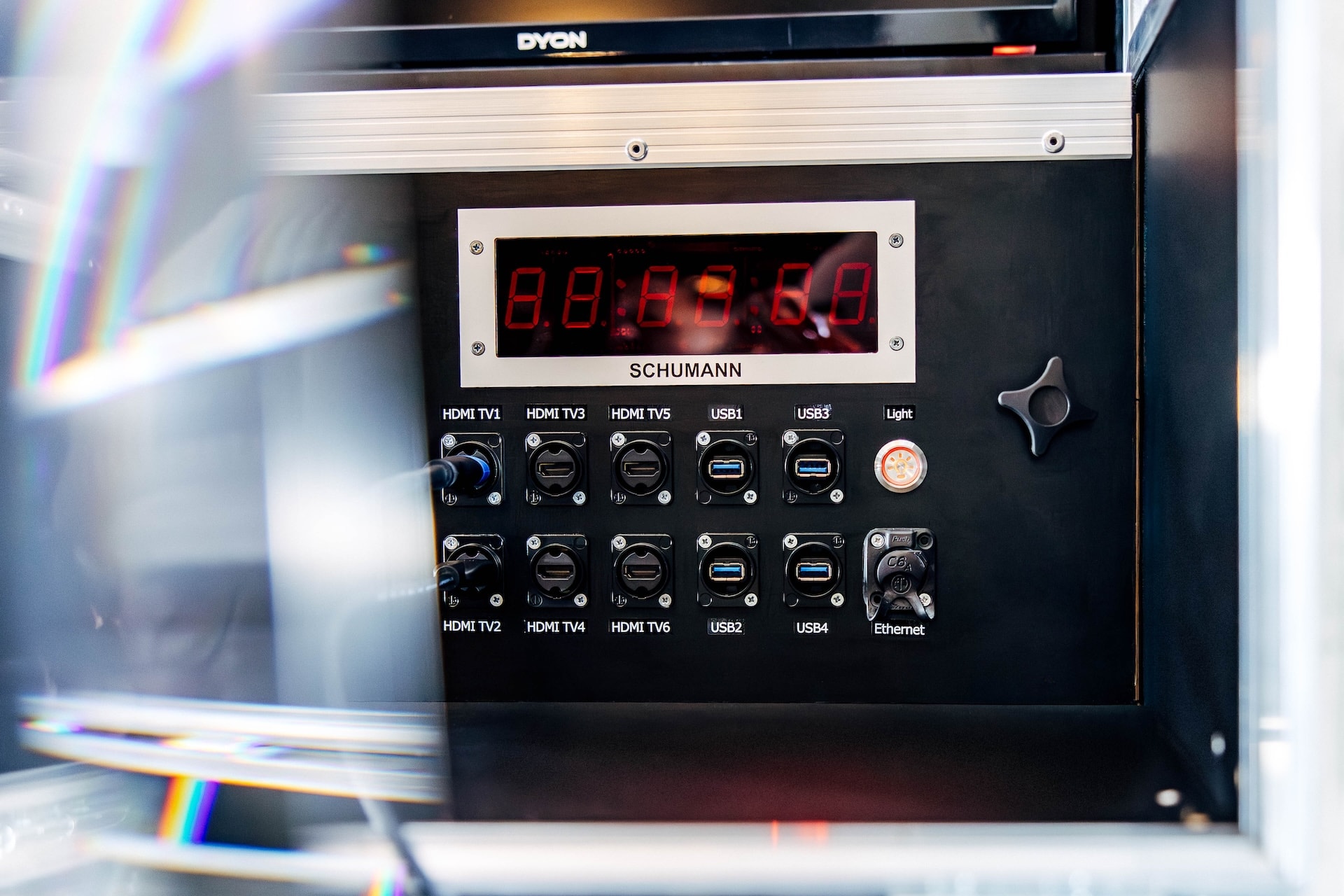

Comprehensive connectivity for monitors, devices, and peripherals – neatly integrated for optimal organization.
Compact for transport – fits in standard loading areas and workshop spaces.
Dimensions closed (L × W × H): 2100 × 900 × 1380 mm
Dimensions open (L × W × H): 2100 × 900 × 2600 mm
Stable construction with integrated tool storage – ready for daily use in professional racing environments.
510 kg (with one filled and one empty Hazet tool case)

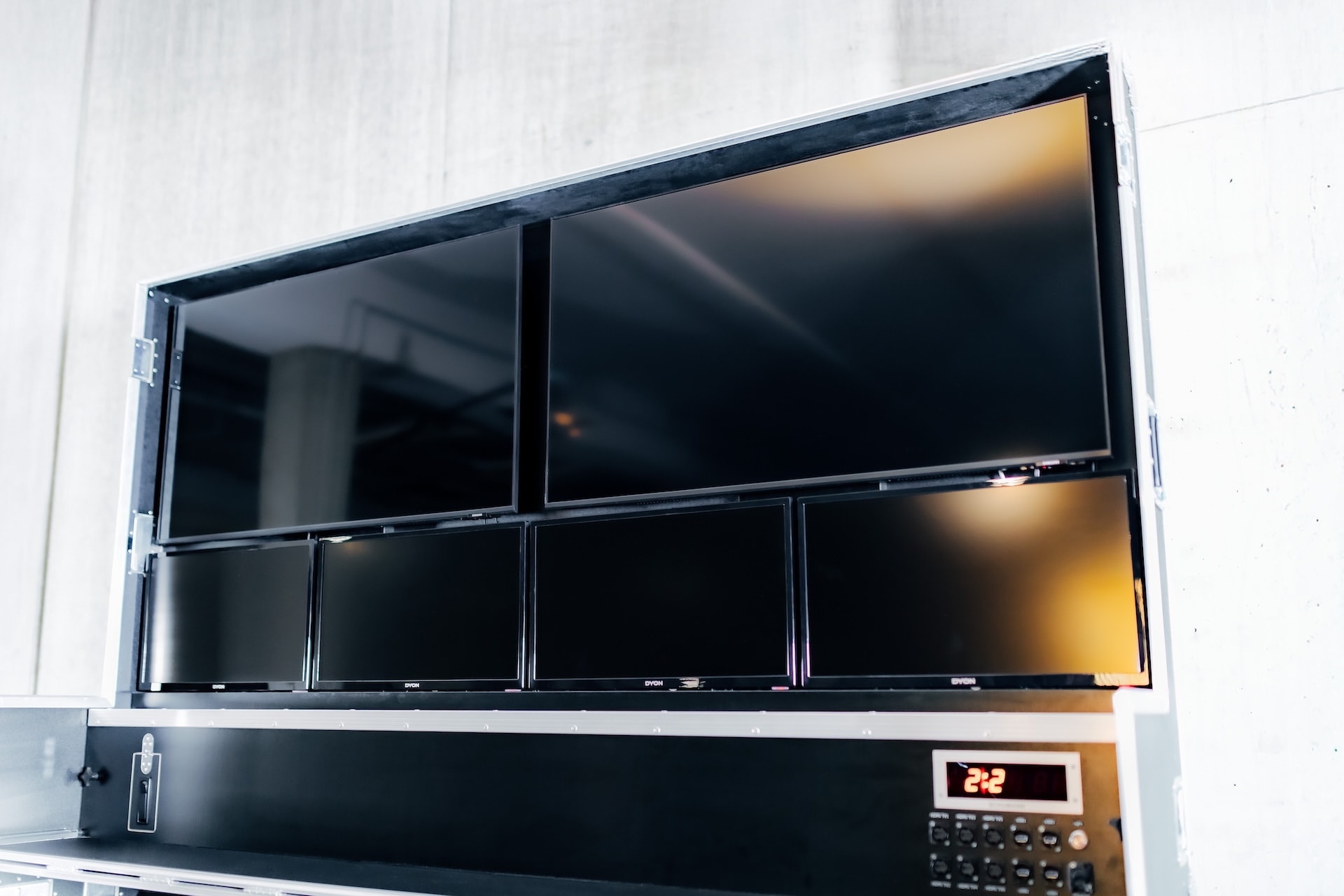

Integrated multi-screen setup for perfect visibility of telemetry, live data, and track signals.2 x 32" & 4 x 16"
Accurate timekeeping via GPS – ideal for team coordination and precise race timing.

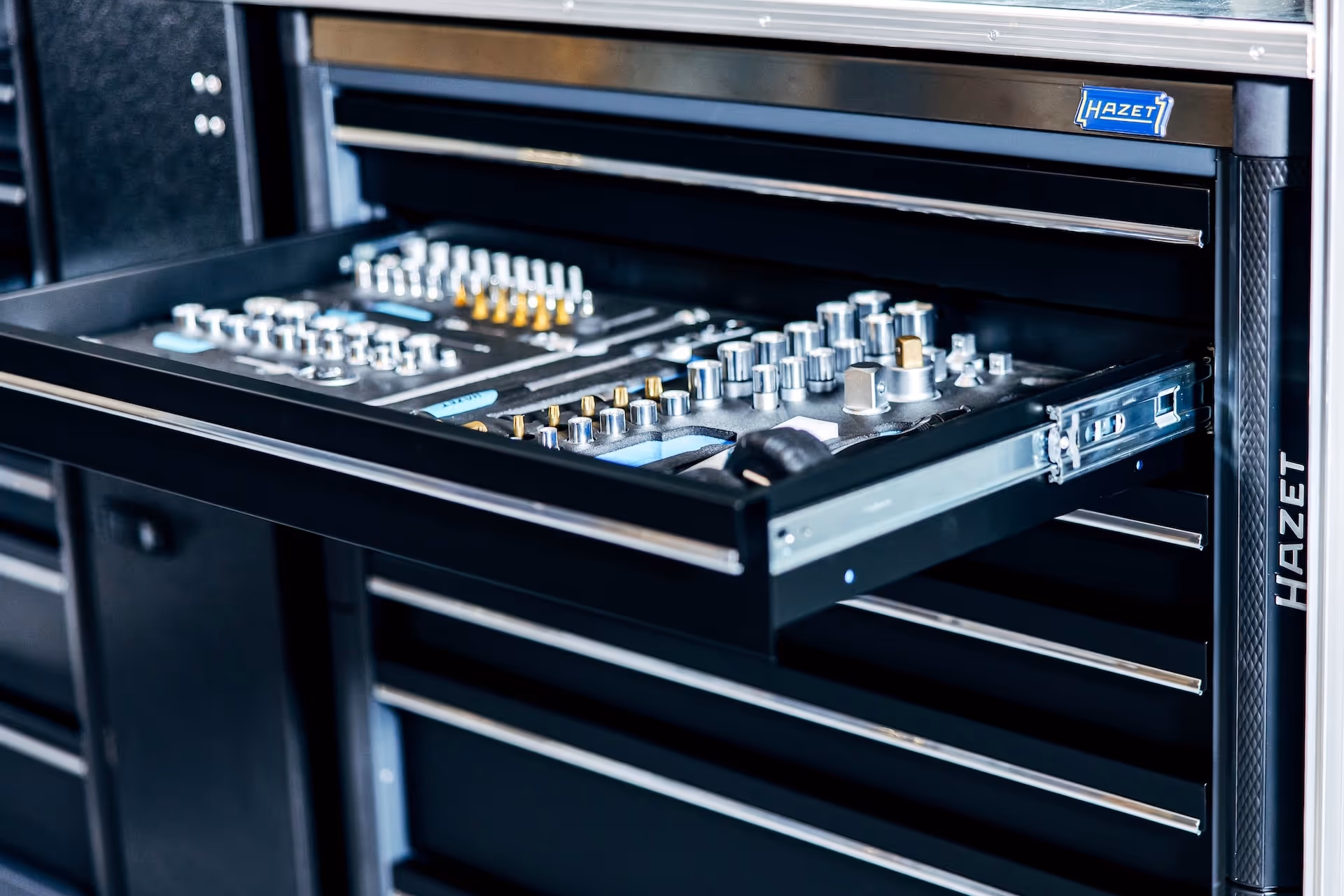

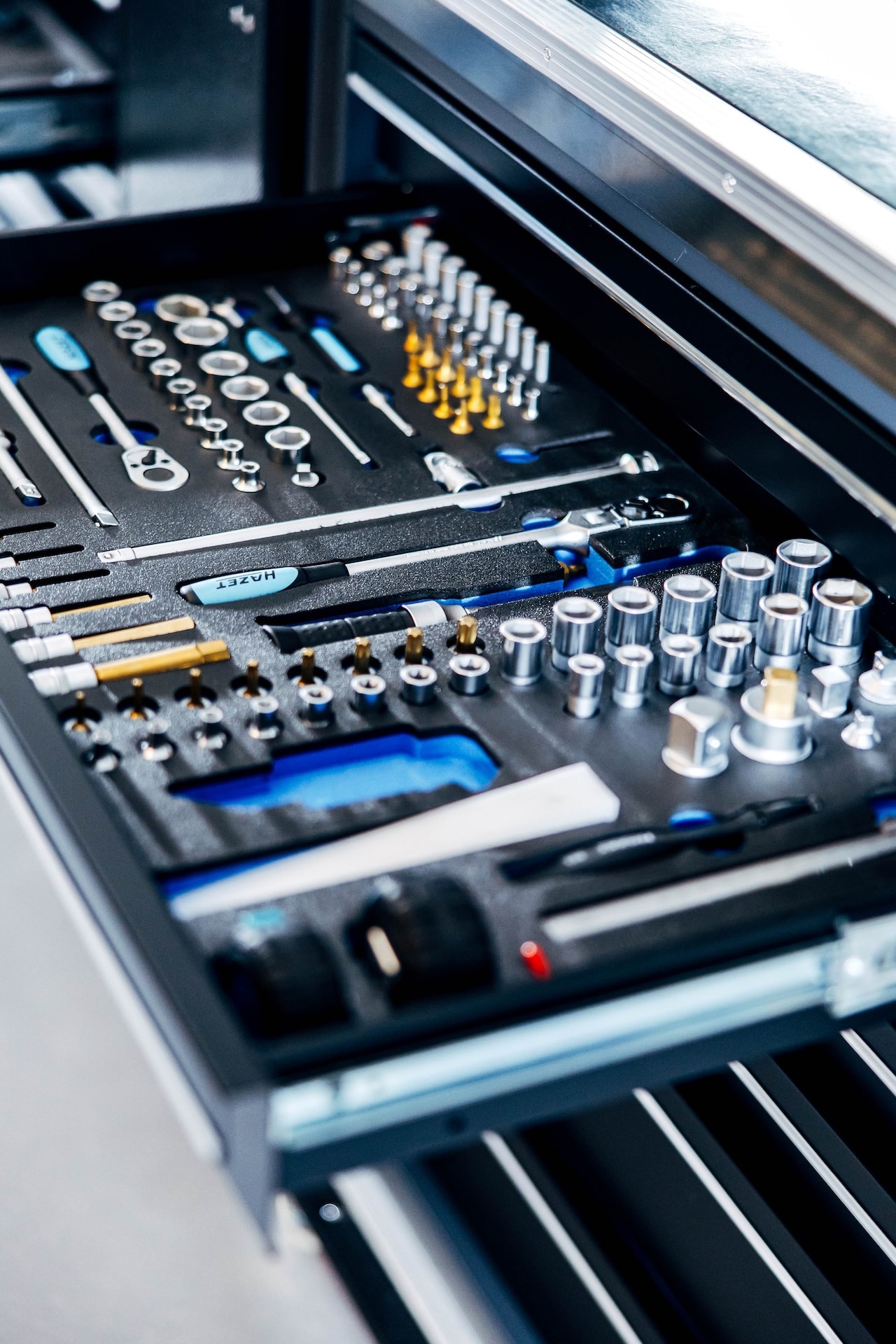

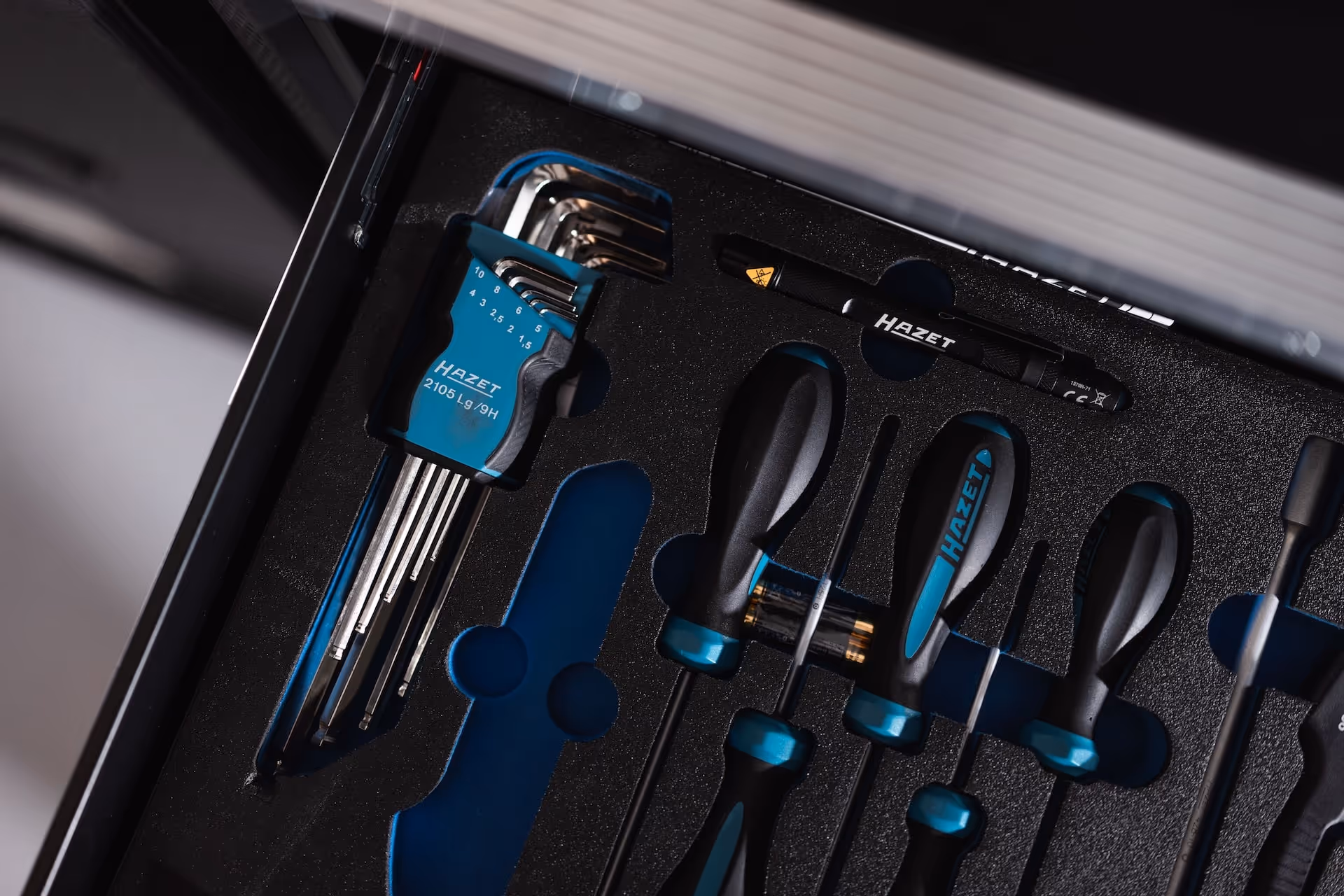

Available with two empty, one filled and one empty, or two fully equipped Hazet tool trolleys.
Fast and reliable data connectivity through an integrated WLAN router and centralized storage system – enabling secure, team-wide data access.

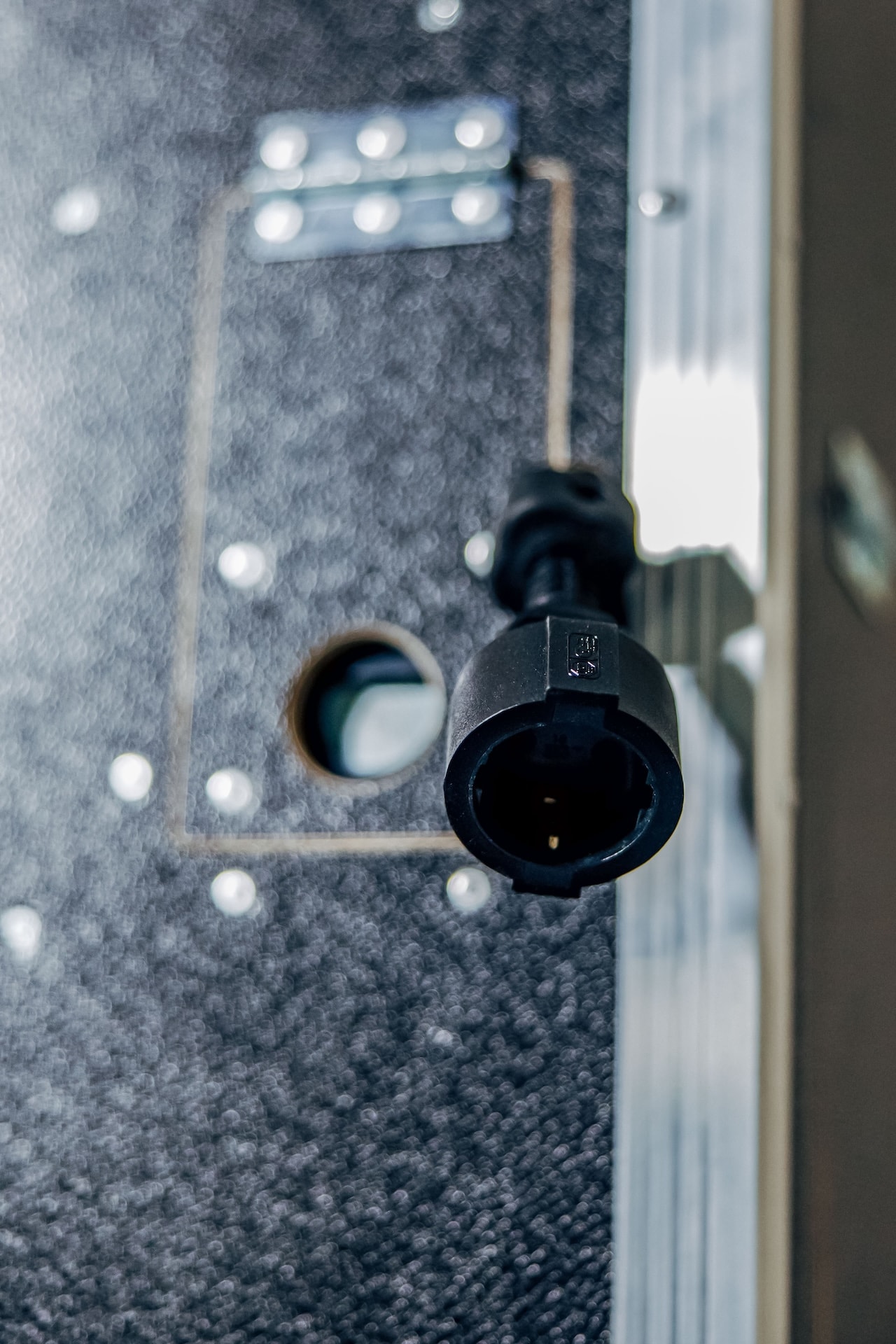

Long connection cable for easy access to external power supply.
Two integrated 10-meter power extensions for flexible setup at the track.

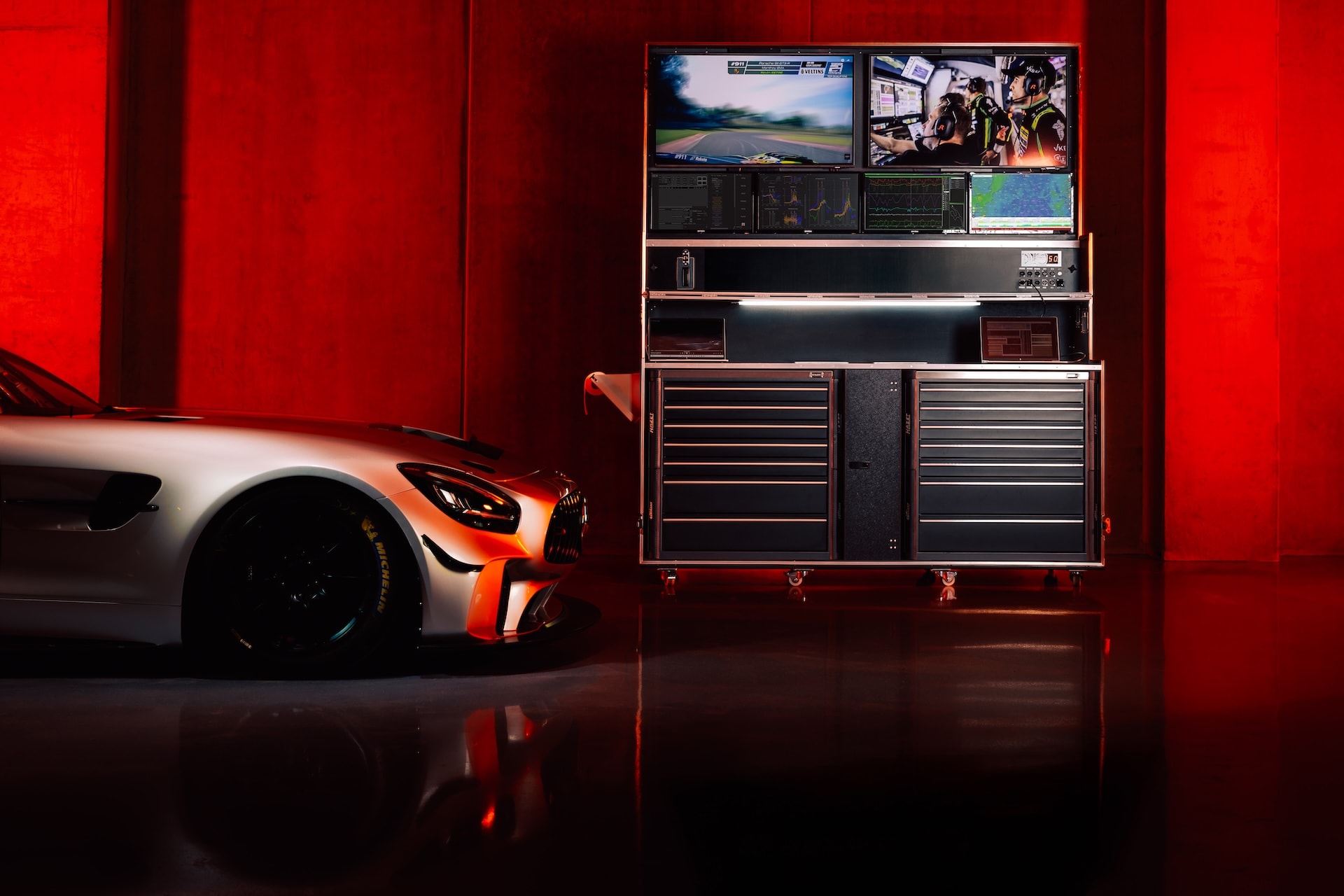

Developed for race and test operations, the TV Case serves as the central command hub for data, analysis, and team communication.Equipped with four 16" and two 32" screens, it provides optimal display options for telemetry, live data, and track feeds.
The illuminated work surface features six 230 V power outlets, while a rear-access storage area and a large central compartment provide ample space for additional equipment.

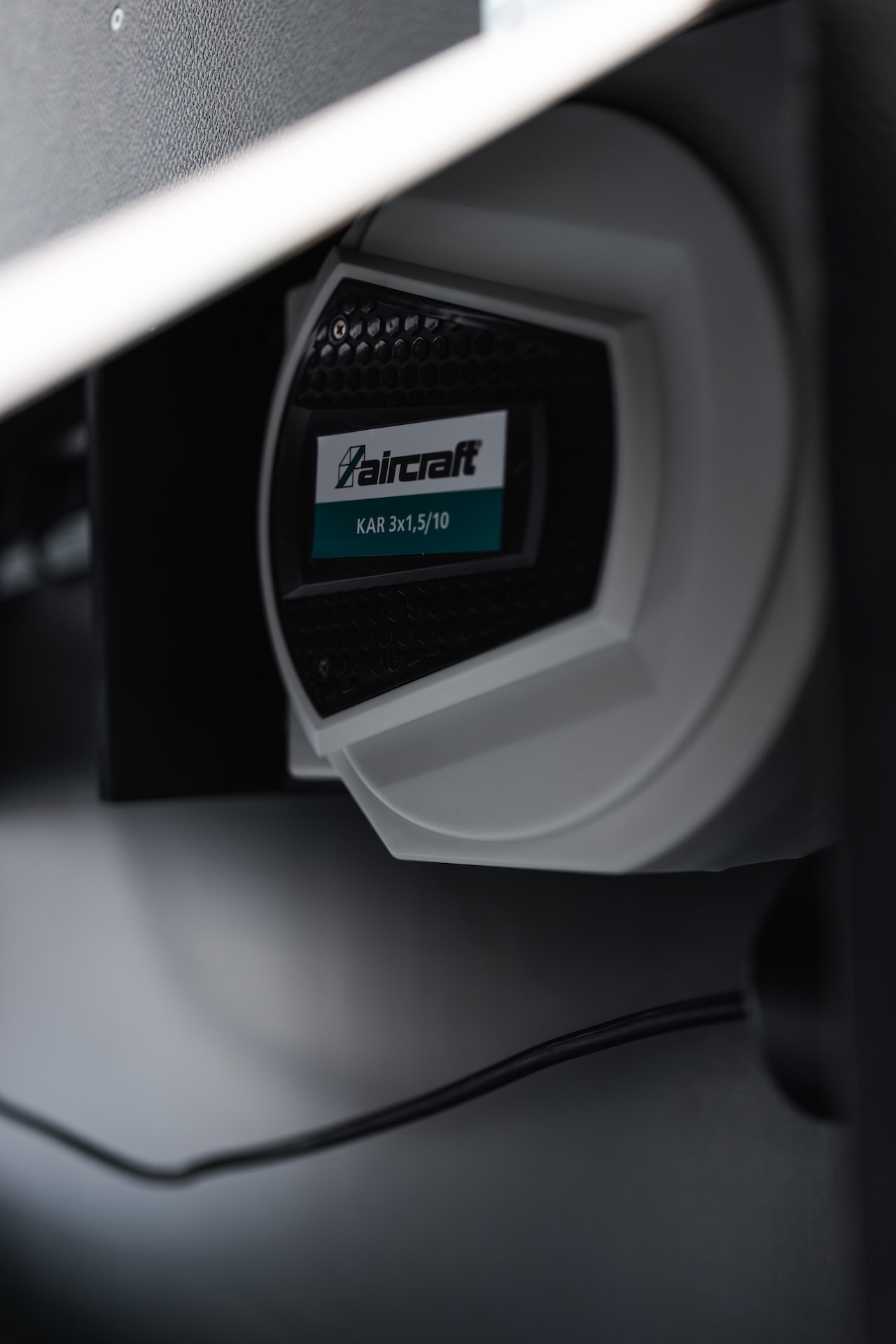

Power is supplied via an integrated, self-retracting 9-meter cable, with two additional 10-meter extension cables allowing power distribution to both sides.

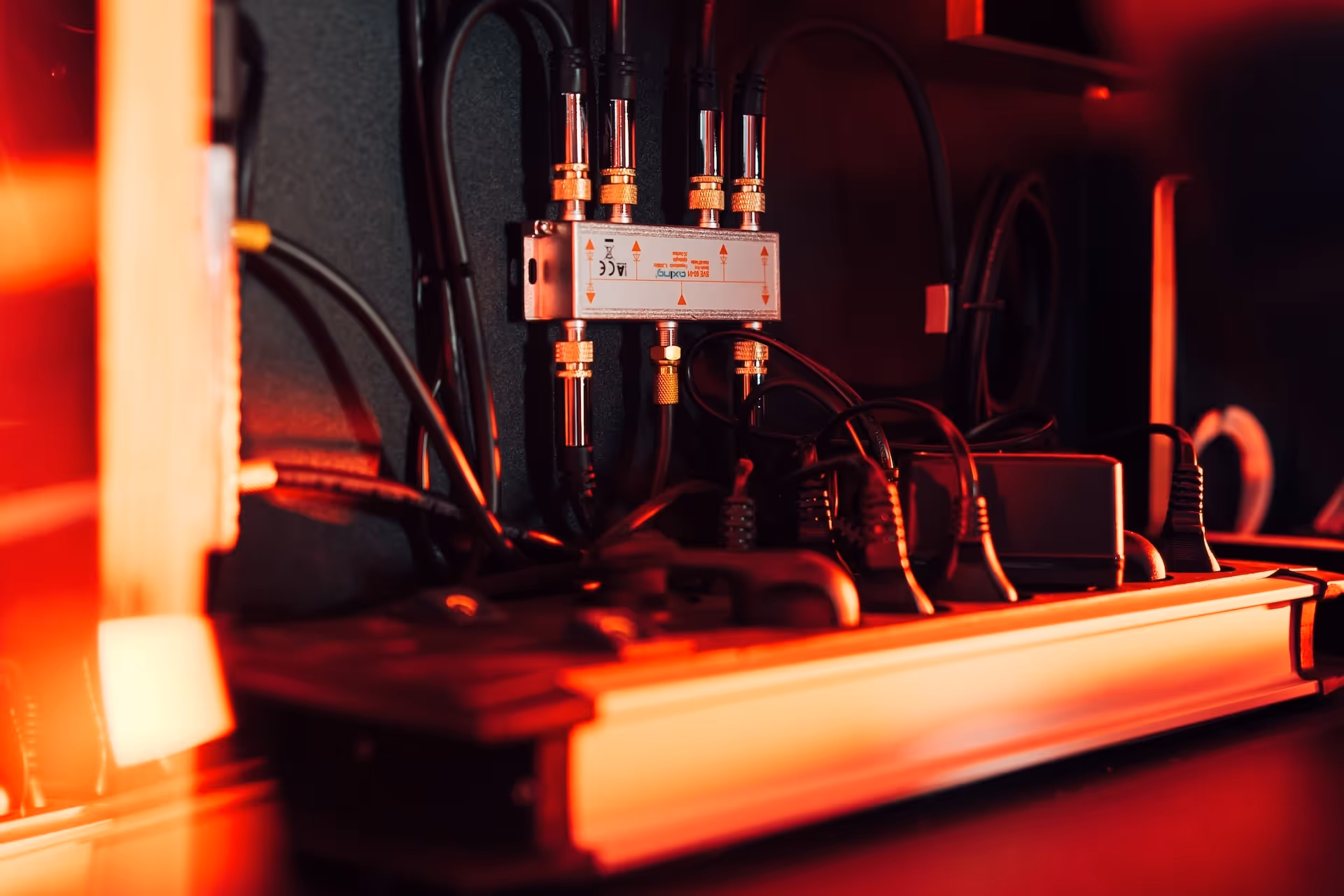

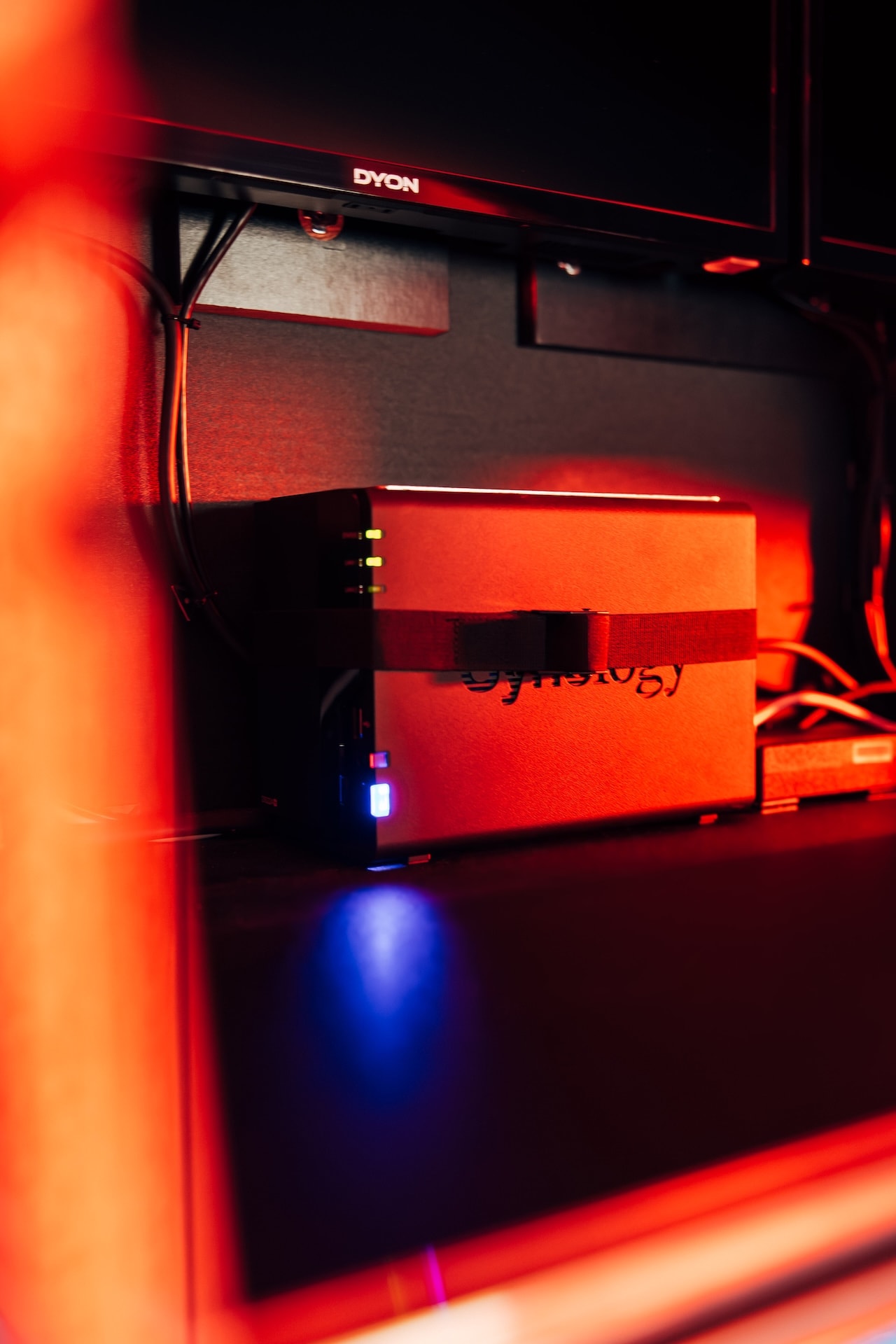

Track signal input is provided through a dedicated connection.An integrated WLAN router with 2 TB Synology storage enables secure data transfer and archiving – optionally via SIM card for mobile operation.
